IC Chipsets: Power, Charging, Audio and Storage Chips for Phone Board Repair
Some phone faults cannot be fixed by replacing a screen, port or battery. When a phone does not turn on, does not charge, has no sound or shows a storage error, the cause is often a failed chip on the mainboard. Board-level repair, also called micro-soldering, replaces individual integrated circuits (ICs) and can save devices that would otherwise be written off.
Common chips and the faults they cause

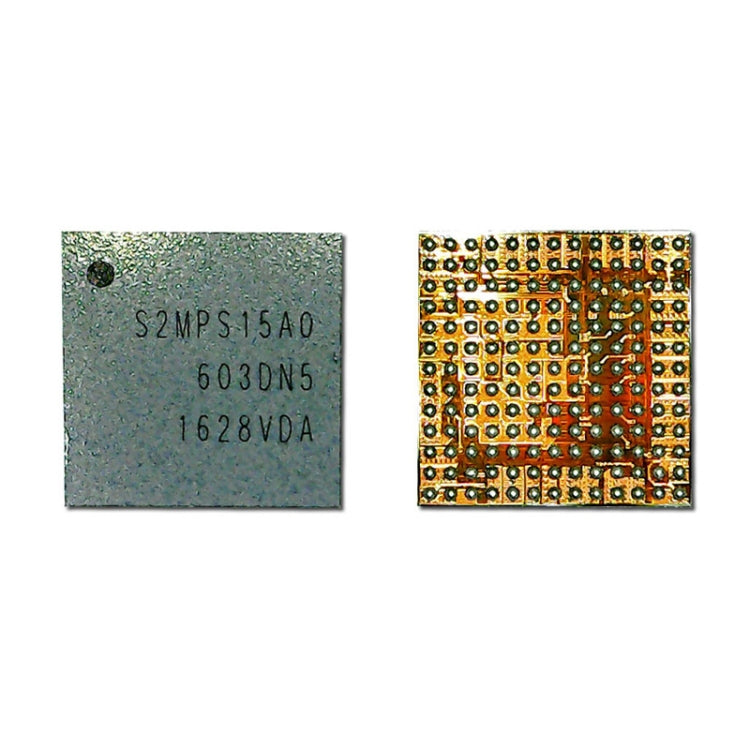

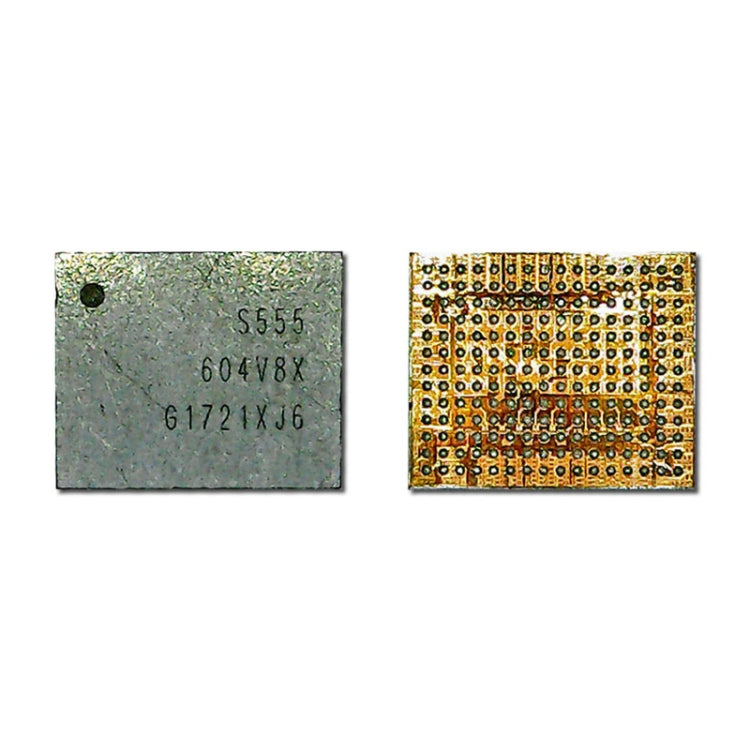

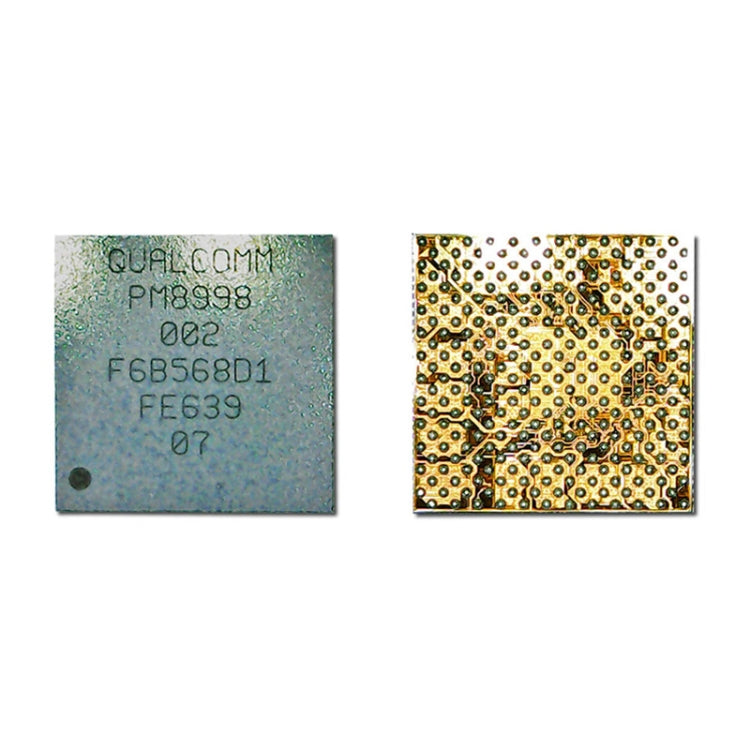

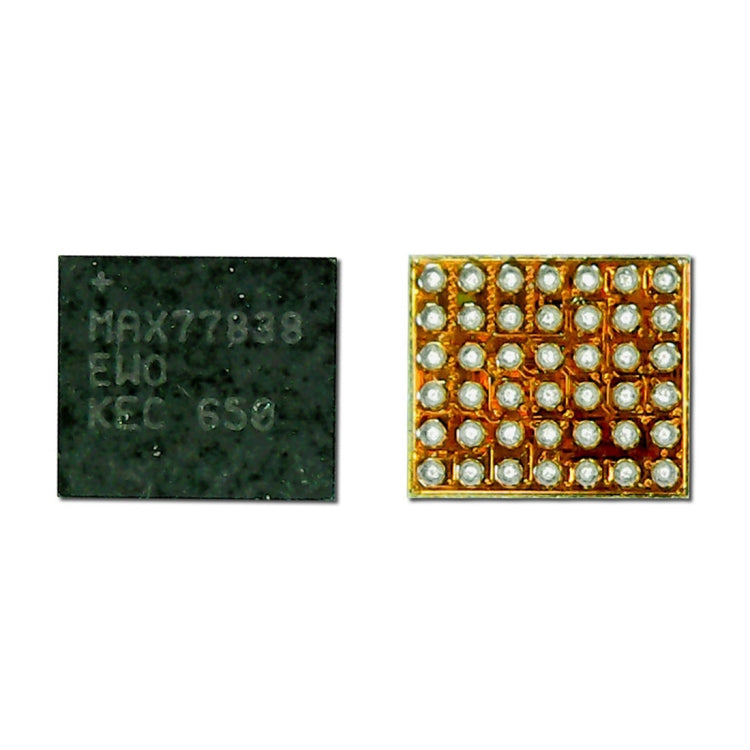

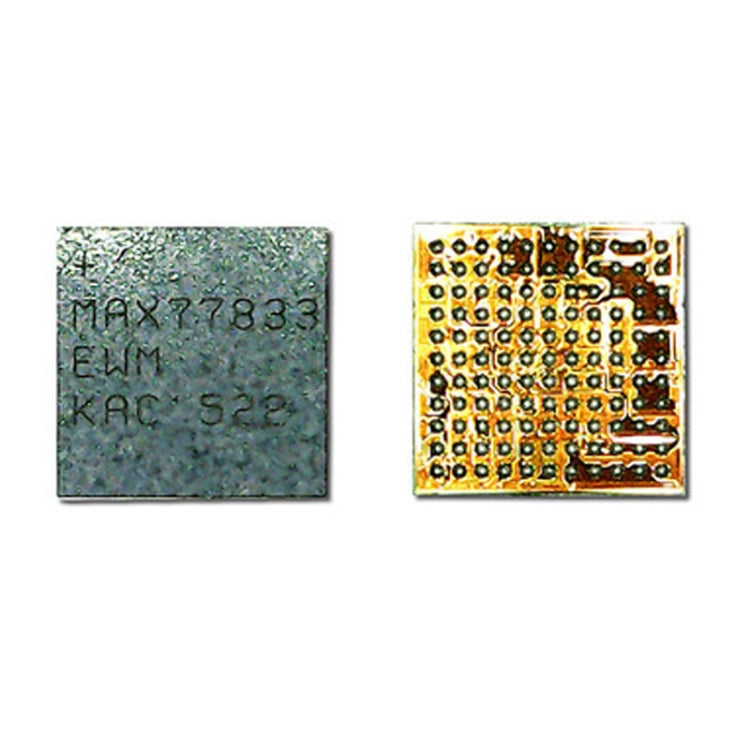

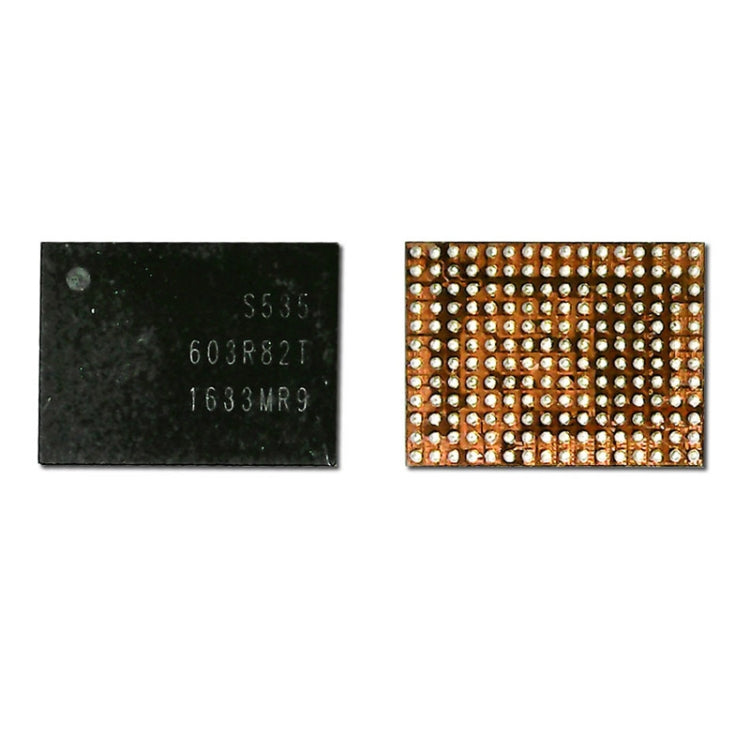

- Power management ICs: no power, boot loops or abnormal current draw.

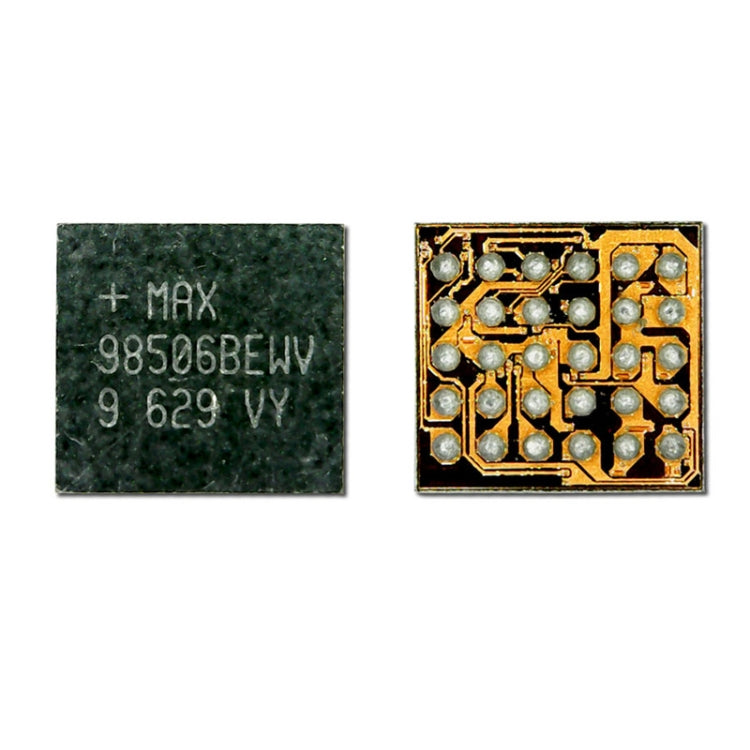

- Charging ICs: not charging, slow charging or charging only when the phone is off; often damaged by low-quality chargers.

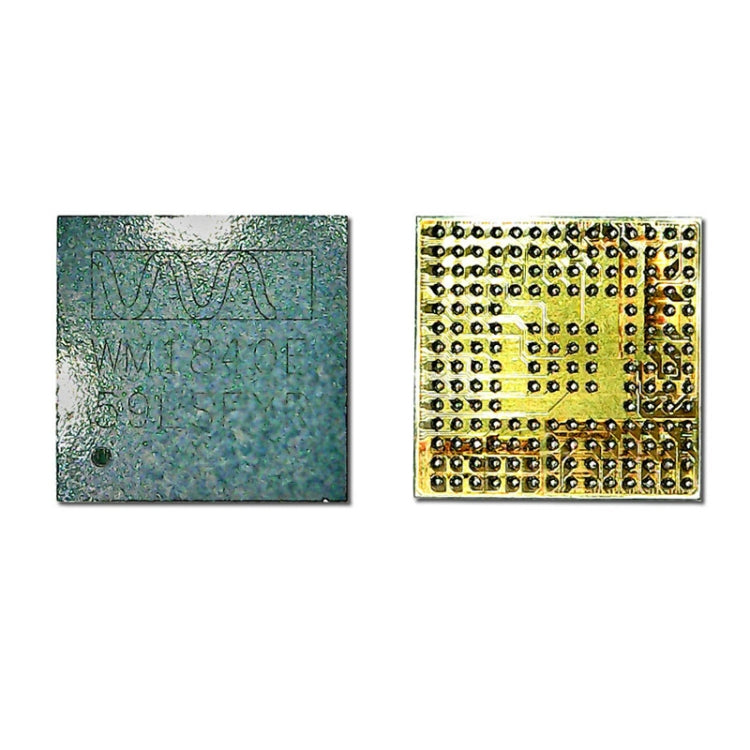

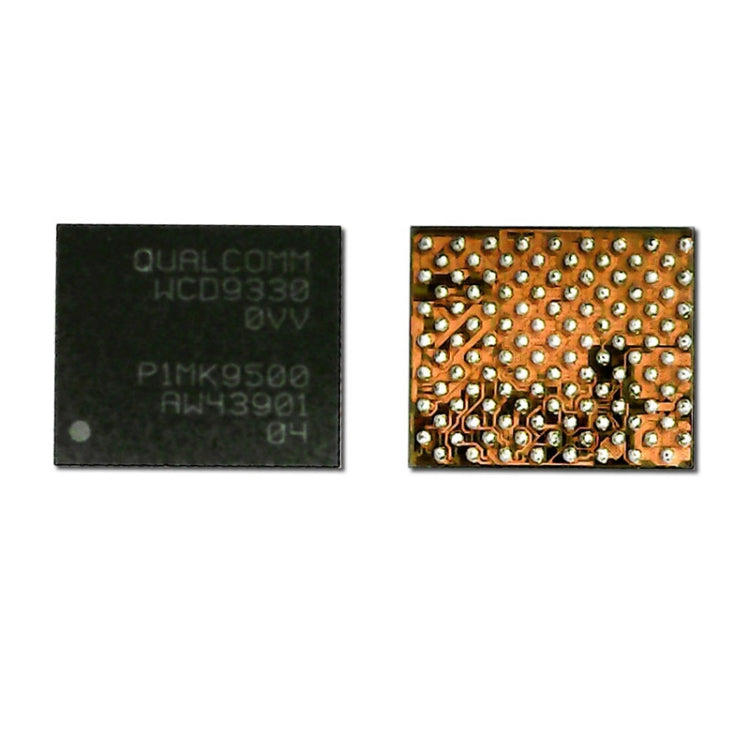

- Audio ICs: no sound in calls, a non-working microphone or greyed-out speaker button. On some iPhone models, audio IC faults are well known.
- Display and backlight ICs: no image or no backlight with a working touch.
- Storage chips: data storage replacement and capacity upgrades, mainly for iPhones.
Who uses IC chips
IC replacement is specialised work done by technicians with micro-soldering experience. It requires a hot-air rework station, a quality soldering iron, flux, solder paste, reballing stencils, a stereo microscope and a DC power supply for current-draw diagnosis.
Choosing the right IC
Chips are specific to the phone model and board revision. Check the part number printed on the original chip, which is more reliable than the phone model alone. Using the wrong chip can cause the phone not to boot or to fail again quickly.
Diagnosis before replacement
Before replacing an IC, diagnose with a DC power supply and multimeter. Check for short circuits, abnormal current and voltages at test points. Many faults that look like chip failures are actually caused by damaged connectors, shorted capacitors or liquid corrosion.
Storage chips
Replacing or upgrading storage on iPhones requires programming the new chip with a dedicated programmer. All data on the original storage will be lost unless backed up.
Board-level repair is more complex than component swaps, but it allows shops to offer services that many competitors cannot.
