SDI Video Converters and Splitters: Professional Video Connectivity
SDI (Serial Digital Interface) is the professional standard for transmitting uncompressed digital video in broadcasting, live production, film sets, churches, conference venues and security systems. SDI uses coaxial cable with locking BNC connectors and carries video over much longer distances than HDMI. This category covers SDI video converters and splitters.
Why SDI is used
- Long distances: SDI can carry signals up to around 100 metres or more depending on the standard and cable, compared with HDMI's typical practical limit of around 15 metres without extenders.
- Locking connectors: BNC connectors do not pull out accidentally during live production.
- Robust cables: coaxial cables are durable and easy to terminate.
- Embedded audio and timecode.
SDI standards
SD-SDI, HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI support increasing resolutions and frame rates, from standard definition up to 4K at 60 frames per second. Devices and converters must support the same standard.
SDI converters

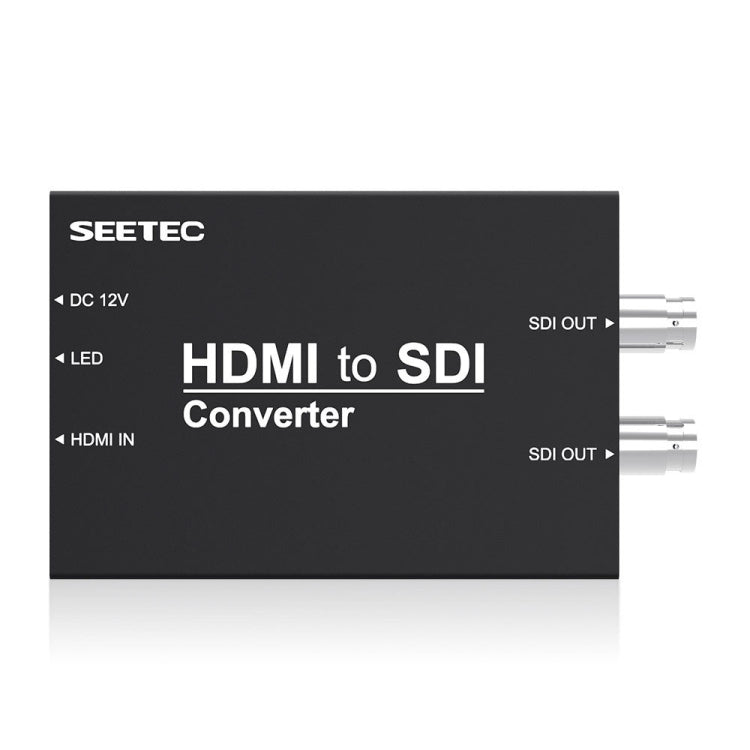

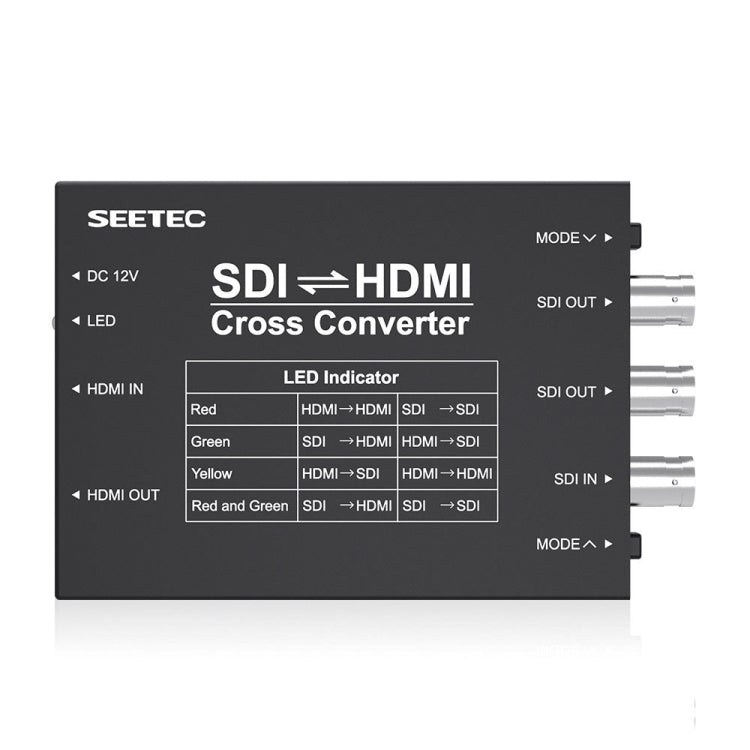

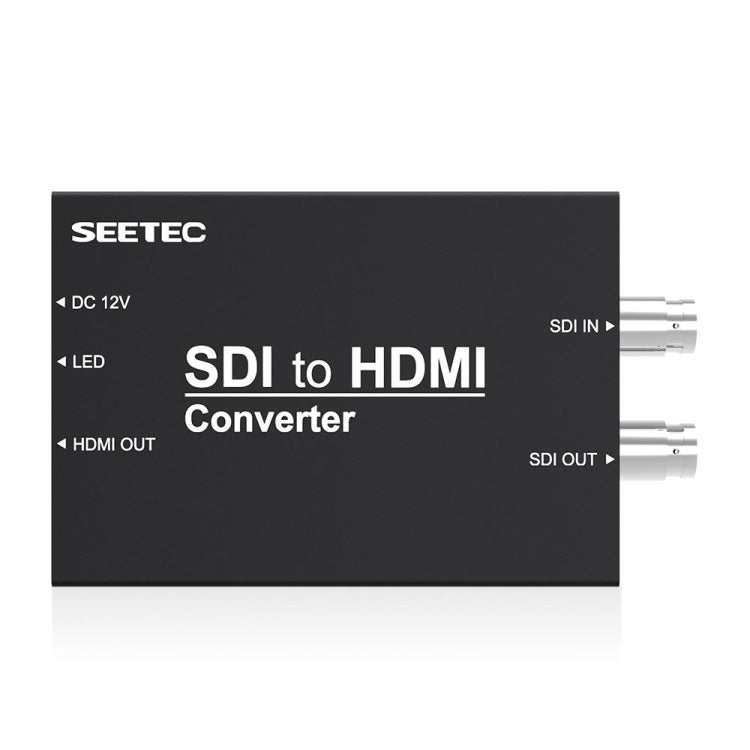

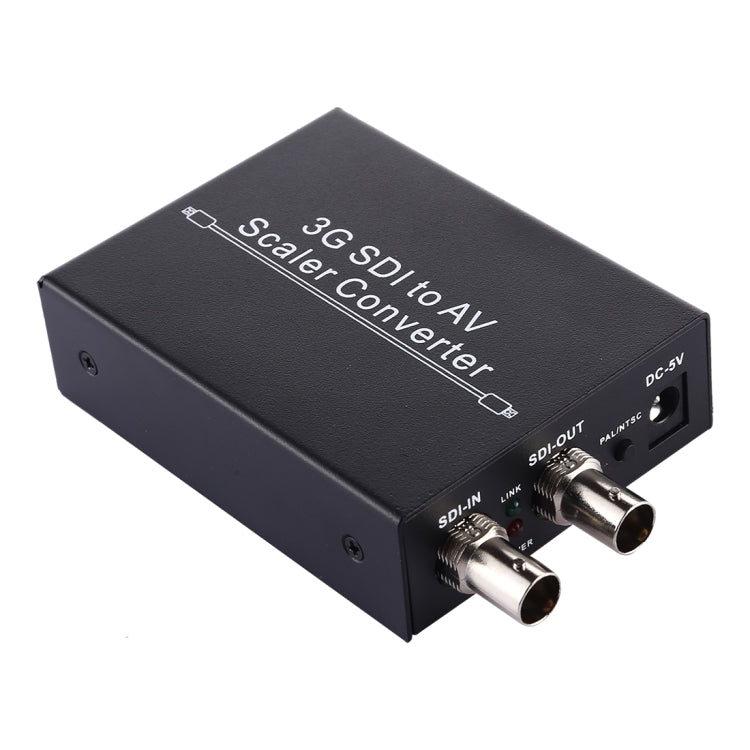

SDI to HDMI converters let you monitor SDI signals on HDMI displays and TVs. HDMI to SDI converters let consumer cameras and computers feed professional SDI systems, switchers and long cable runs. Bi-directional converters handle both directions.
SDI splitters

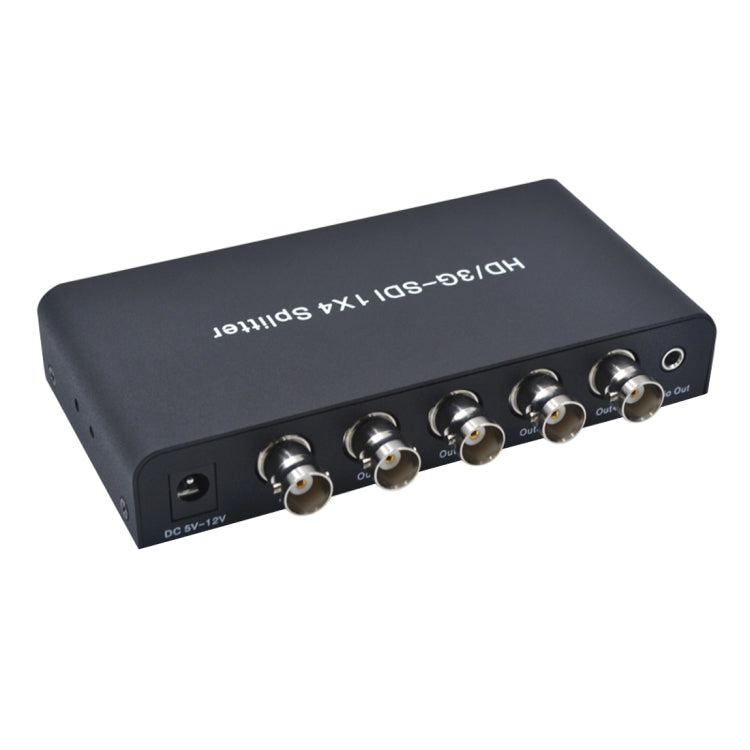

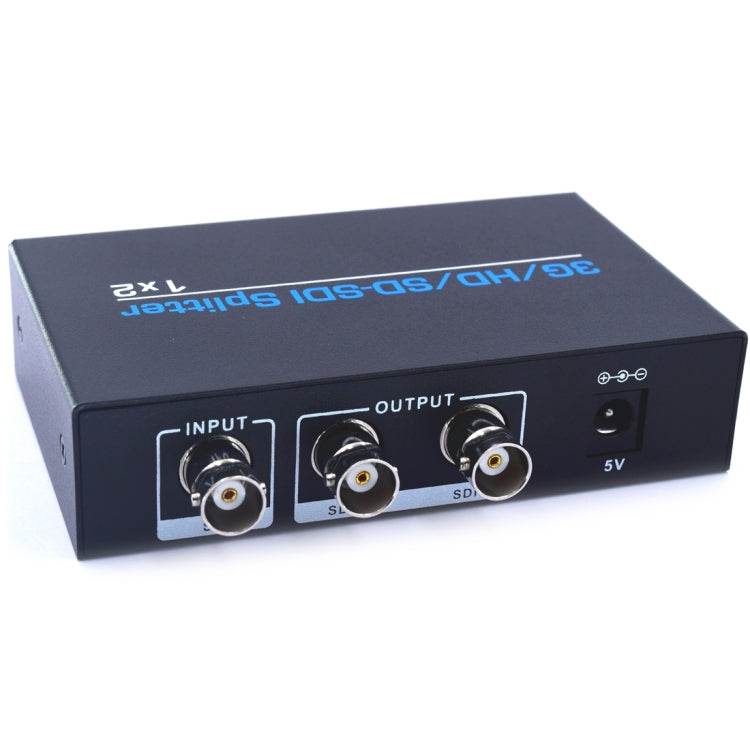

Splitters send one SDI signal to several destinations, such as monitors, recorders and streaming encoders, without signal loss.
Cables
Use 75-ohm coaxial cables rated for the SDI standard. Higher standards such as 12G-SDI require high-quality cables for long runs.
Practical tips
- Check the SDI standard needed for your resolution and frame rate.
- Use quality 75-ohm cables.
- Use converters with loop-through outputs for monitoring.
- Power converters reliably during live events.
SDI converters let productions combine professional and consumer equipment in a reliable workflow.
Typical setups
A common small-venue setup sends camera signals over SDI to a production switcher, with an SDI splitter feeding a recorder and a confidence monitor at the same time. SDI to HDMI converters are then used at the end of the chain for projectors and consumer displays.
