CCTV Video Accessories: Video Baluns, Capture Cards and Audio Pickups
Video accessories help connect, transmit and record CCTV signals and audio. This category covers video baluns, video capture cards and audio pickup heads.

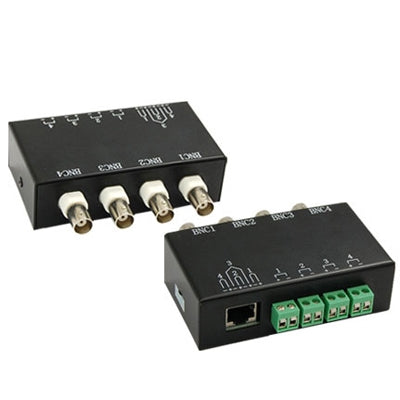

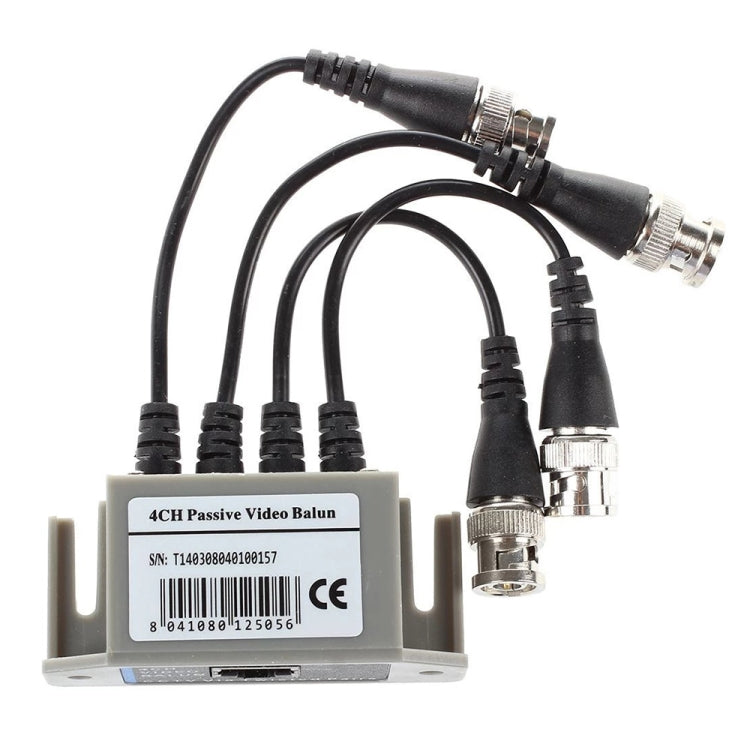

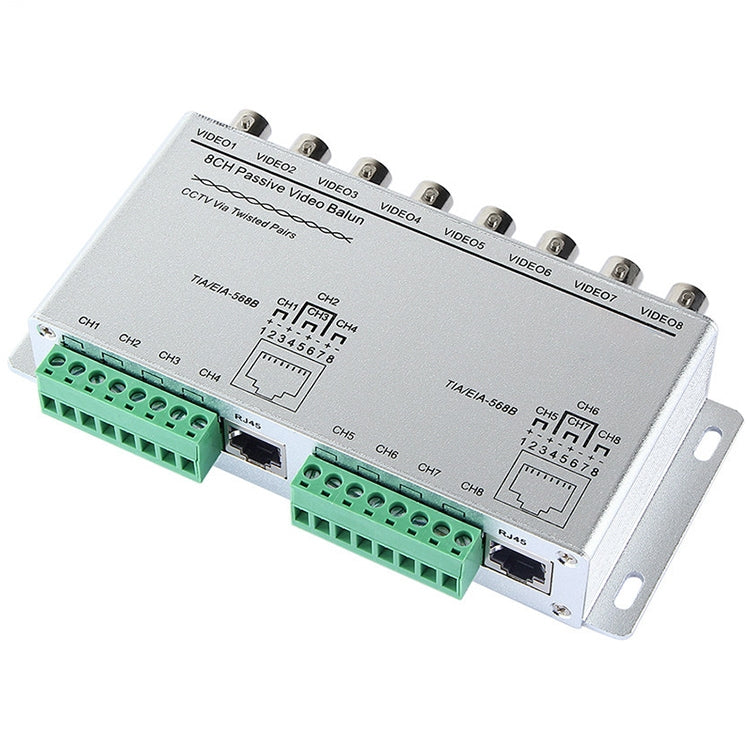

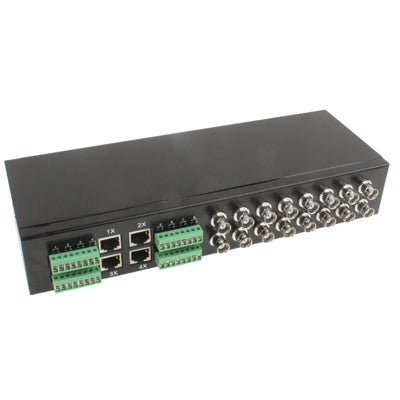

Video baluns
Video baluns transmit analogue and HD-over-coax video signals over twisted-pair network cable (Cat5e or Cat6) instead of coaxial cable. They are used in pairs, one at the camera and one at the recorder. Baluns allow longer cable runs, use cheaper cable and make it possible to use existing network cabling. Passive baluns work over moderate distances, while active baluns extend range further. Check compatibility with the camera's video standard, such as AHD, TVI or CVI.
Video capture cards
Capture cards convert video signals into digital formats a computer can record. In security systems, they turn computers into DVRs. They are also used to digitise video from analogue sources. Check the number of inputs, resolution and software compatibility.
Audio pickup heads
Audio pickups are microphones that capture sound for CCTV systems. They connect to cameras or recorders with audio inputs. Choose pickups with suitable sensitivity and range.
Legal considerations for audio
Recording audio is restricted in many countries and may require consent or clear signage. Check local laws before installing audio pickups.
Installation tips
- Use quality twisted-pair cable for baluns.
- Keep video cables away from power cables to reduce interference.
- Match baluns to the camera standard.
- Test signal quality before finishing installation.
Troubleshooting
Interference, rolling lines and poor images often indicate cable or balun problems. Check connections and use better cables or active baluns for longer distances.
Practical tips

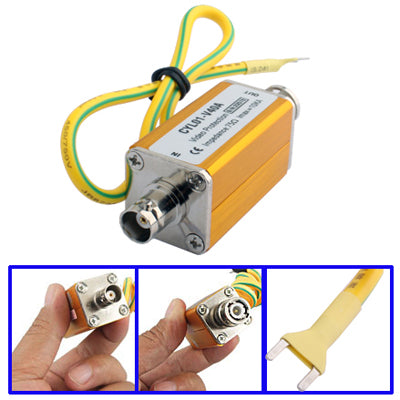

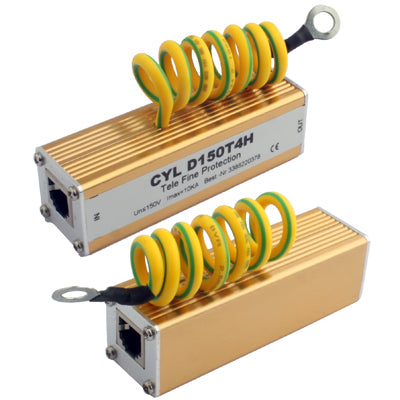

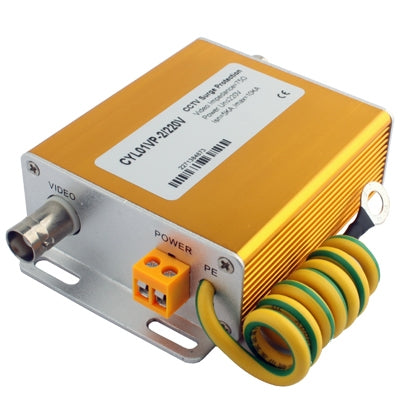

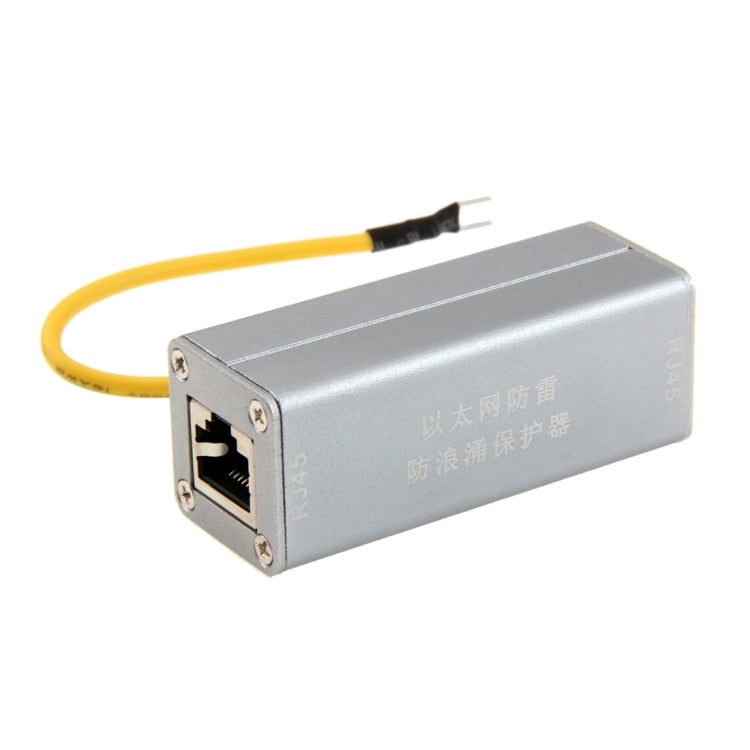

Label baluns and cables for easier maintenance. Use surge protection for outdoor cables.
Upgrading older systems
Baluns let installers reuse existing network cabling when upgrading or expanding analogue CCTV, saving time and the cost of new coaxial cable runs.
Video accessories solve cabling and recording challenges in CCTV installations.
