Wall Plates and Parts: HDMI, USB, Network and Blank Plates for Clean Installations
Wall plates give a neat, professional finish to electrical, network and audio-visual installations. Instead of cables hanging from walls, connectors are mounted in plates flush with the wall surface. This category covers wall plates and related parts for homes, offices, hotels, schools and meeting rooms.
Types of wall plates
- HDMI wall plates: provide HDMI connections for TVs, projectors and home cinemas.

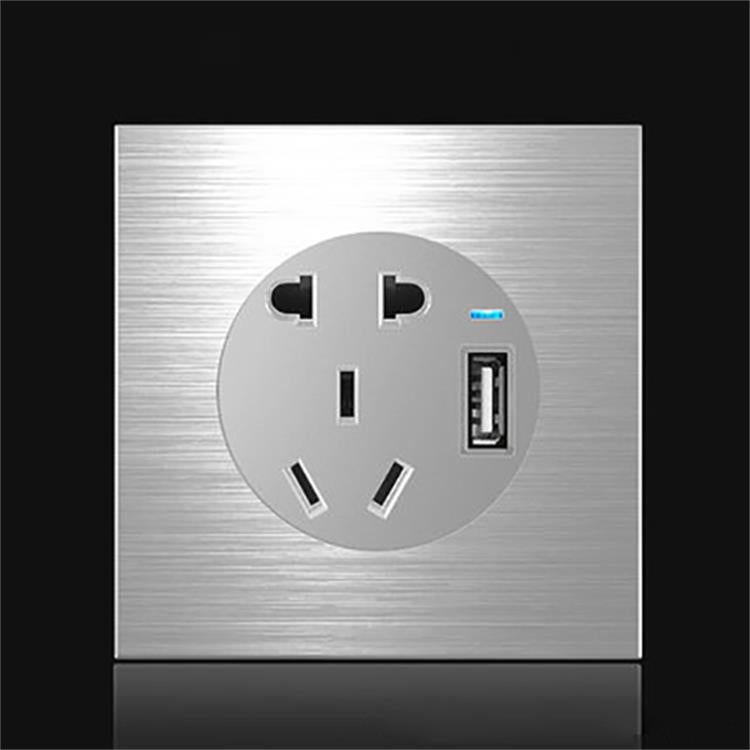

- USB wall plates: provide USB charging ports, sometimes combined with power sockets.

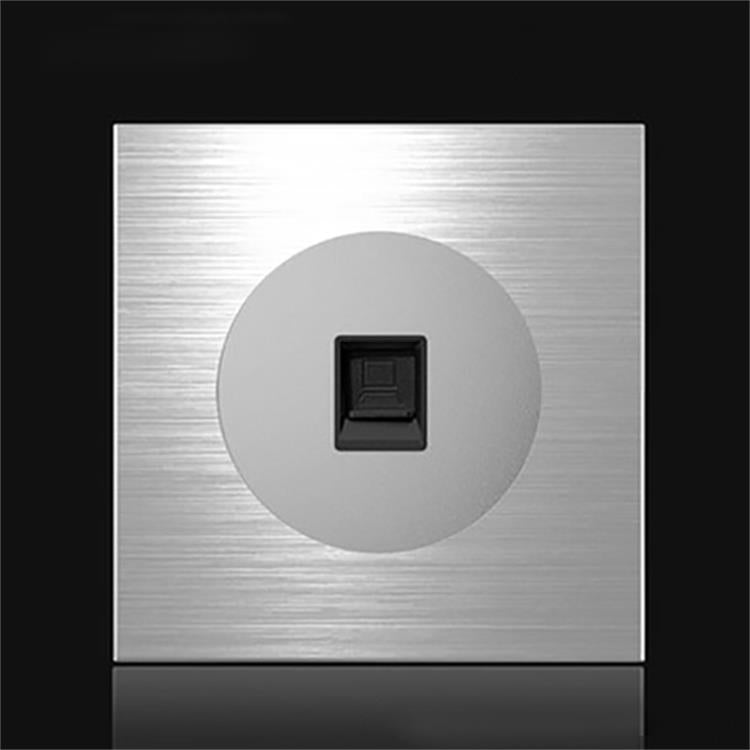

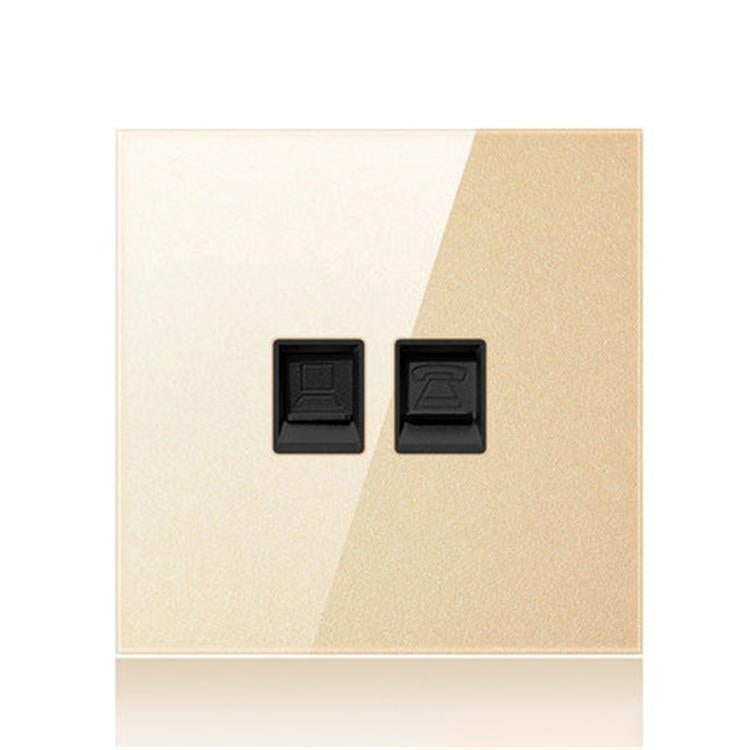

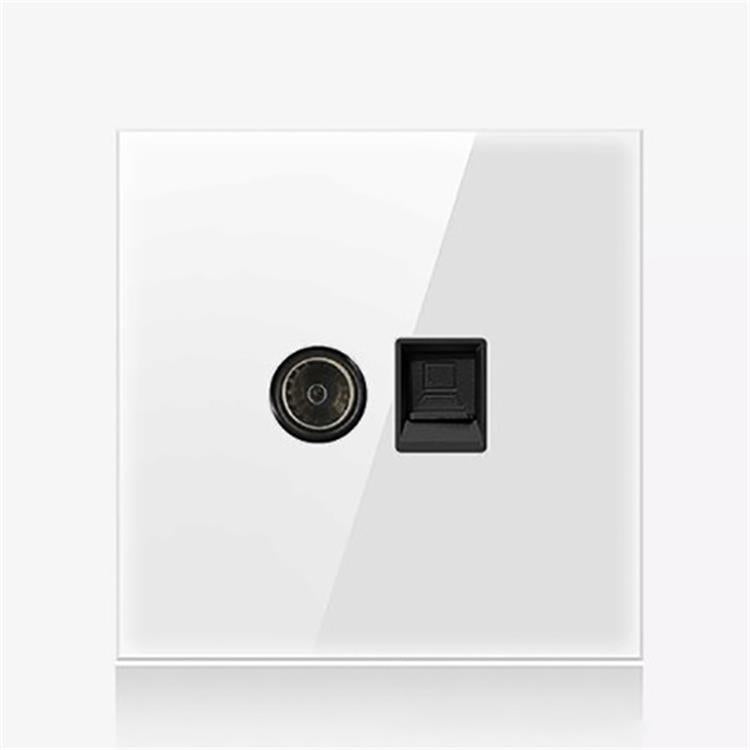

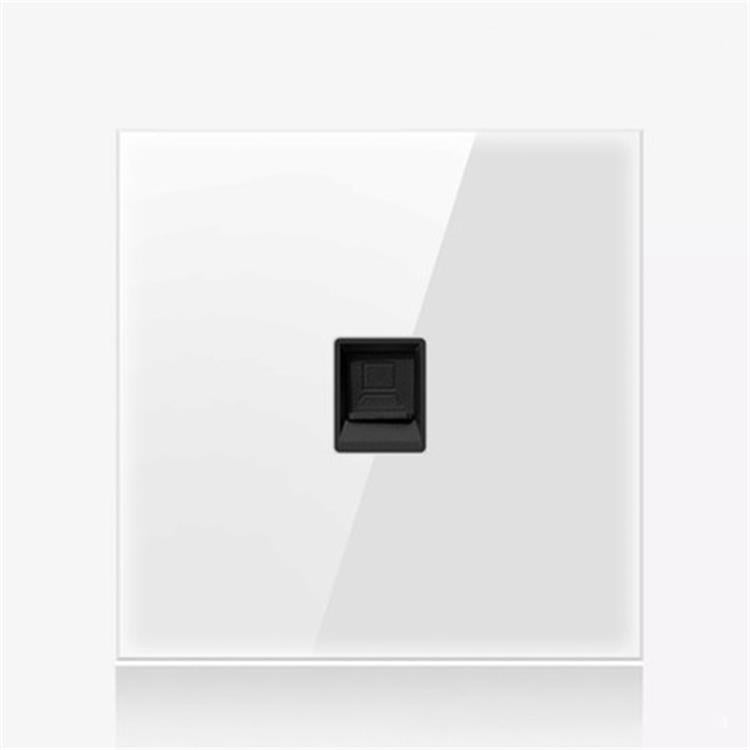

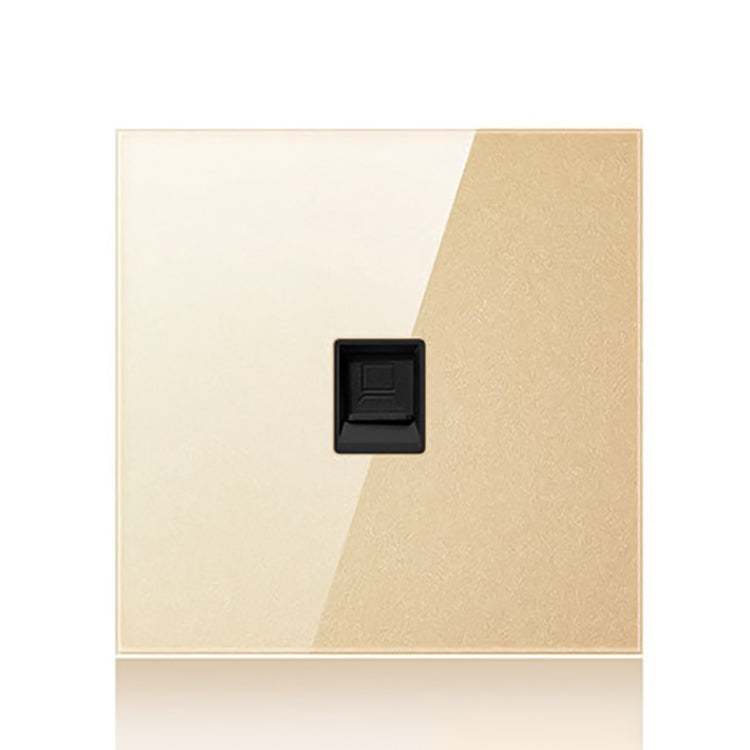

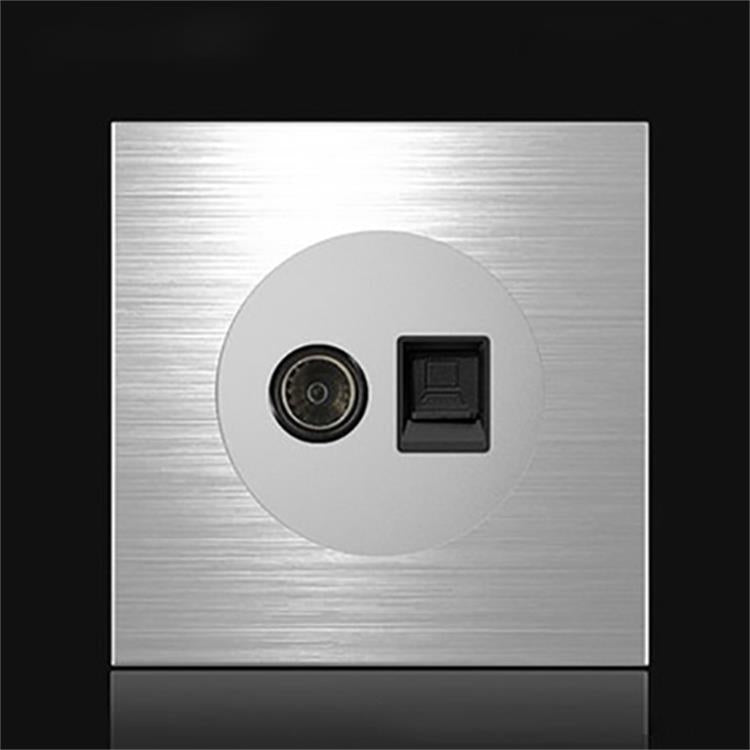

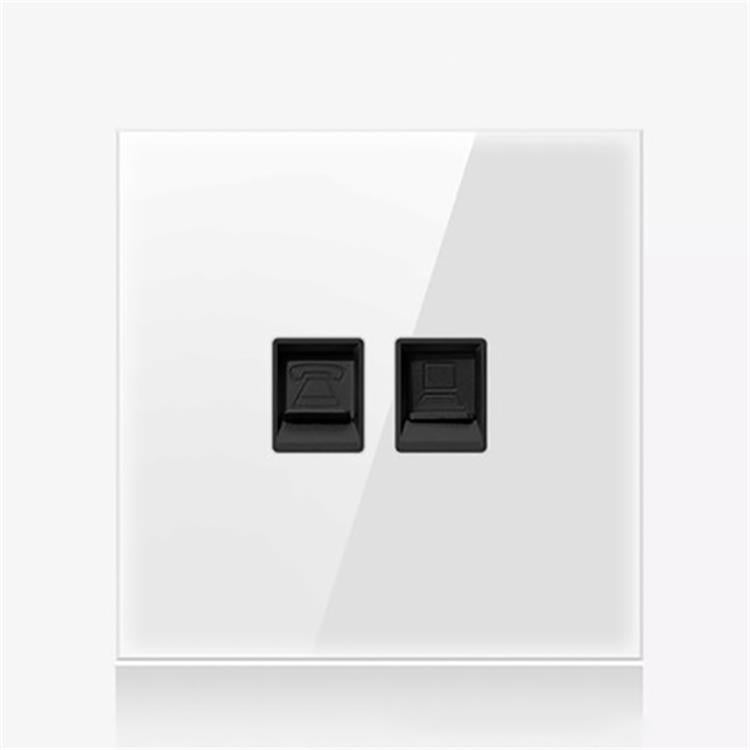

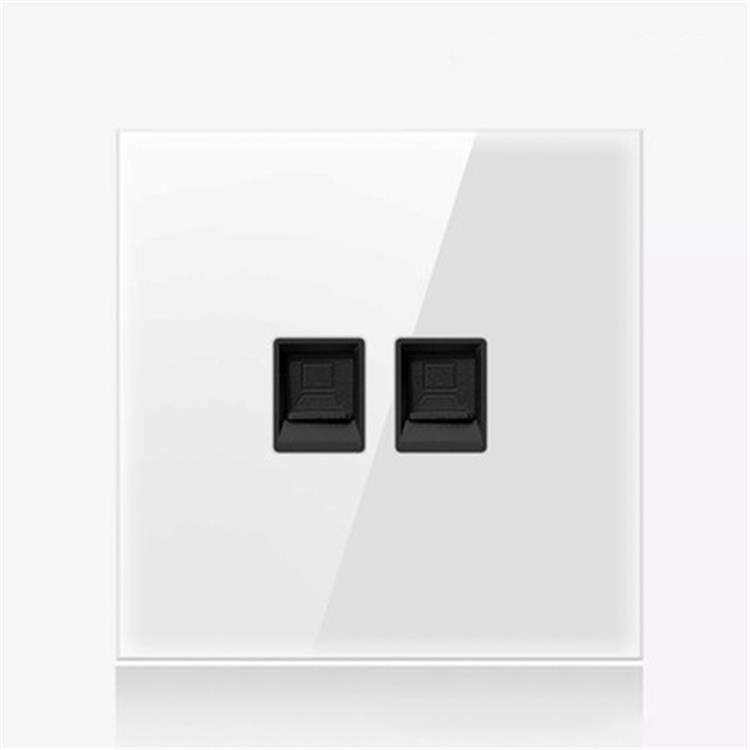

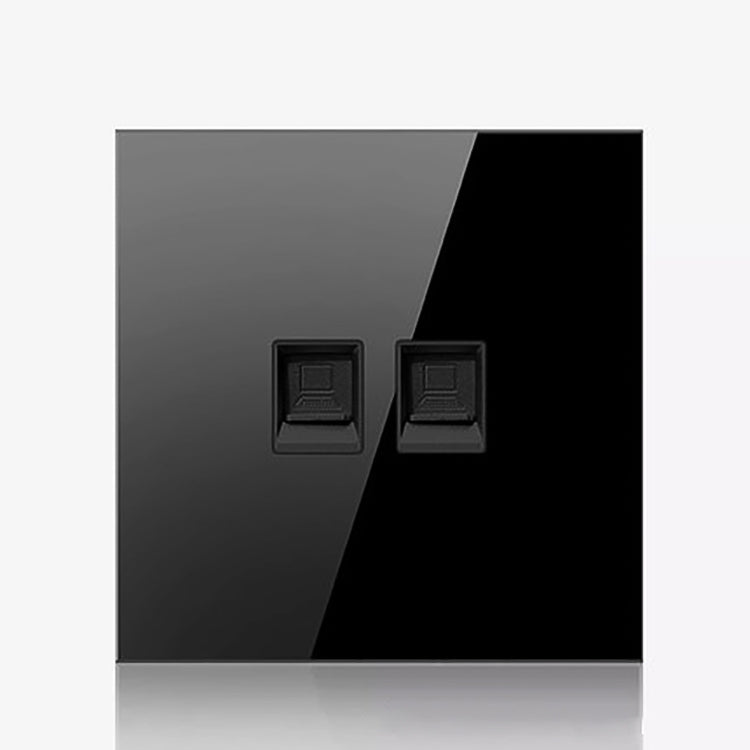

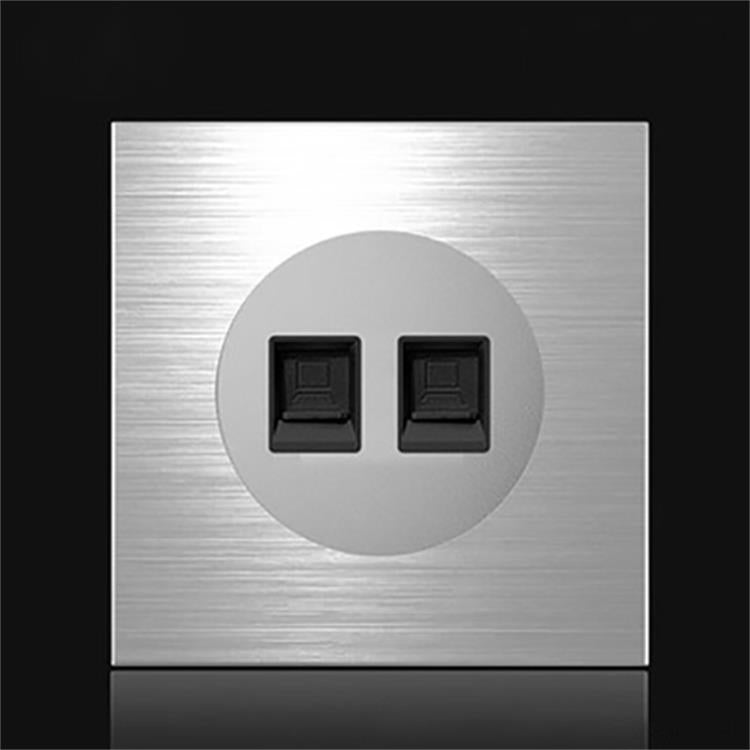

- Network (keystone) plates: hold RJ45 network jacks and other keystone modules, allowing flexible combinations.

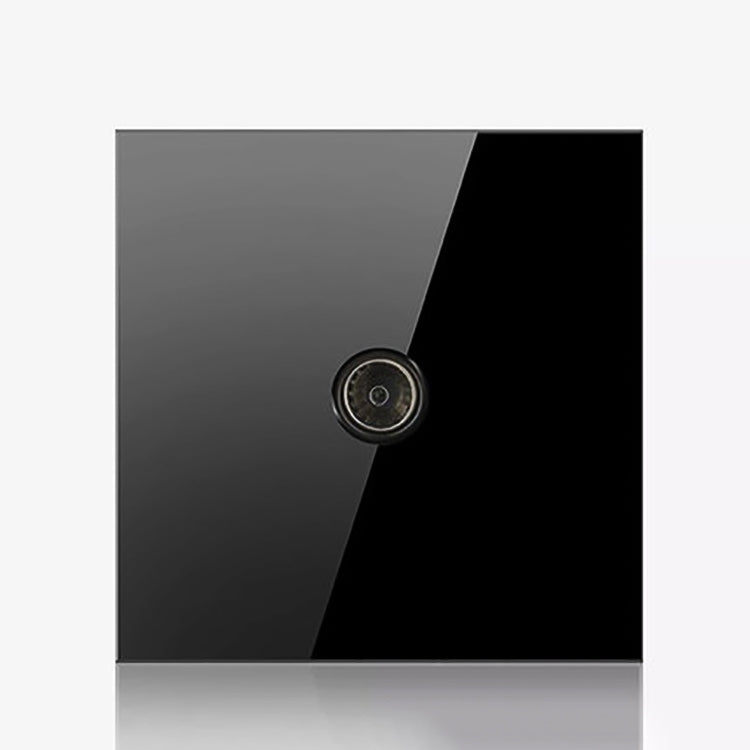

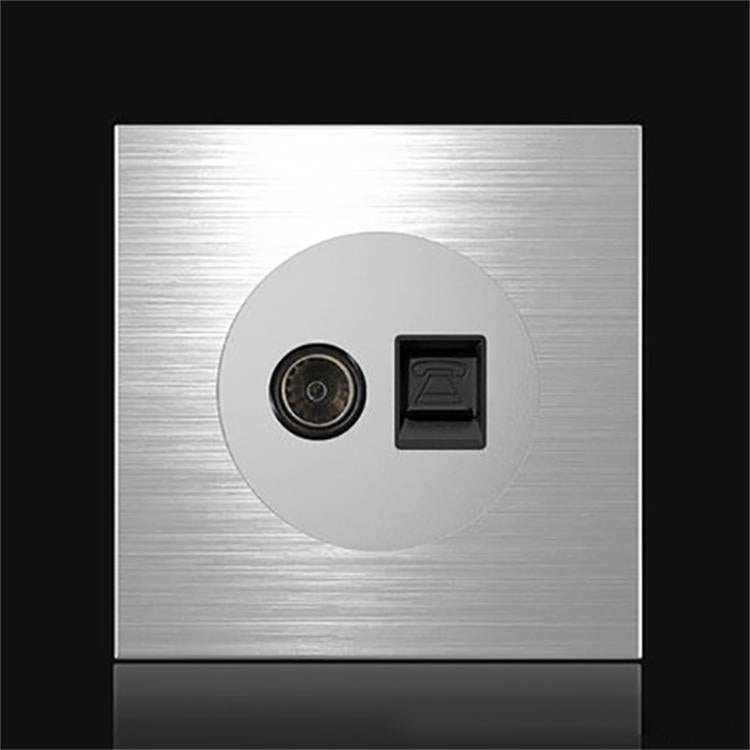

- Audio and video plates: for speaker wire, RCA and other AV connectors.

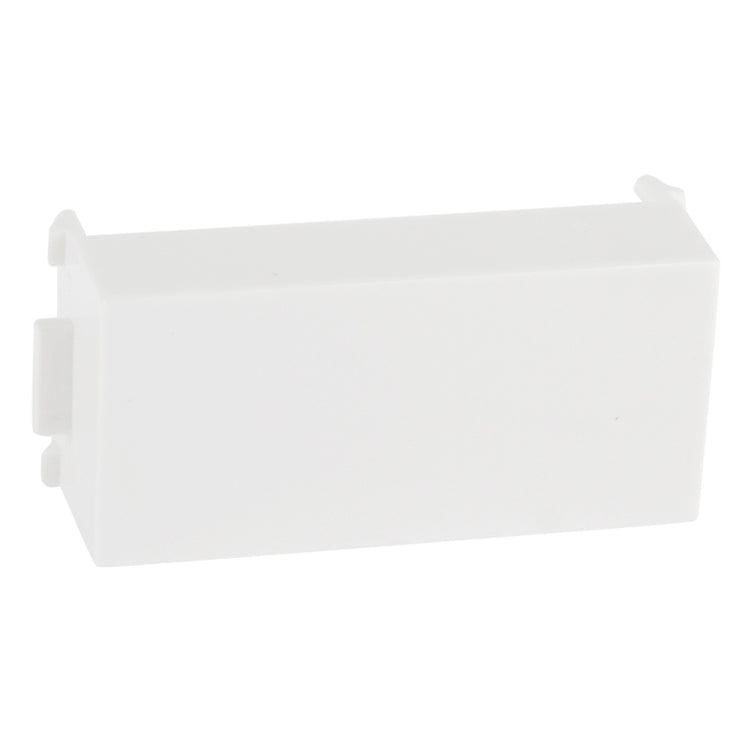

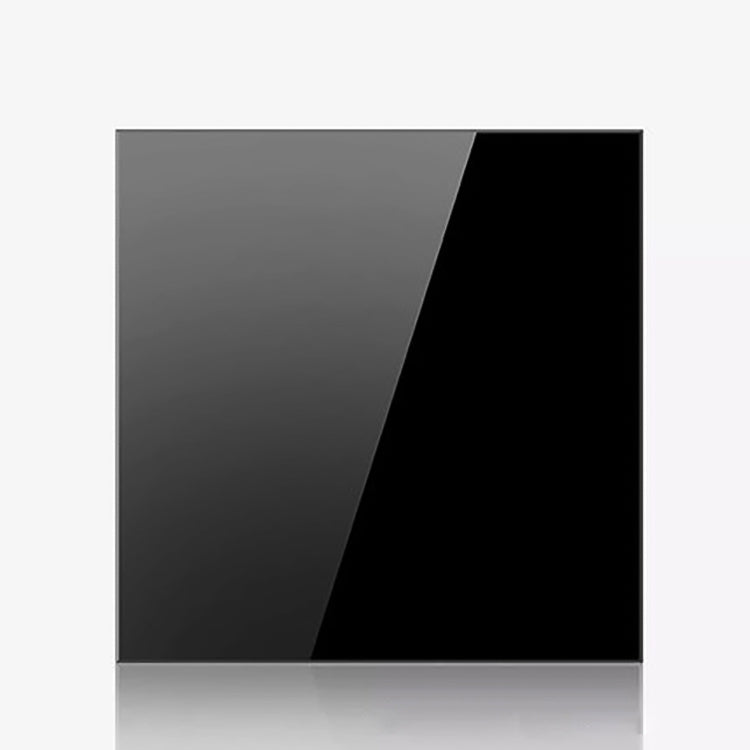

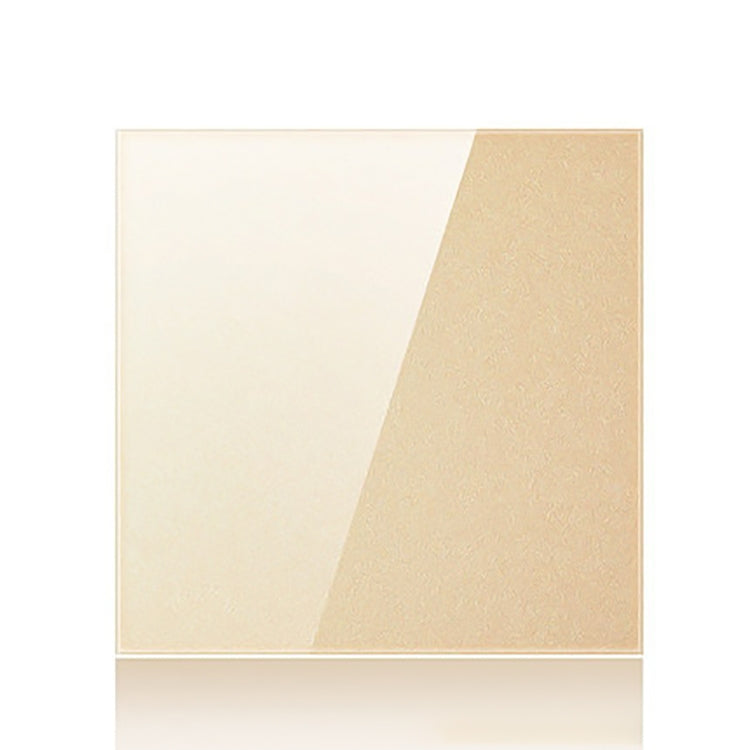

- Blank plates: cover unused back boxes.
- Cable pass-through plates: allow cables to pass neatly through walls.
Standards and sizes
Wall plate sizes differ by country. Common standards include 86 x 86 mm (used in China and parts of Asia), UK and European single-gang sizes and US single-gang and double-gang sizes. Check the back box size and mounting holes in your region.
Keystone modules
Keystone systems allow mixing different connectors, such as network, HDMI, USB and audio, in one plate. Choose the number of ports needed and add modules as required.
Installation
Wall plates with power connections must be installed according to local electrical regulations, usually by a qualified electrician. Data and AV plates can often be installed by DIY users, following cable management best practices.
Planning installations
Plan cable routes before renovation. Add spare ports for future needs. Use quality cables suitable for the required bandwidth, such as Cat6 for network and high-speed HDMI for 4K.
Practical tips
- Check the back box standard in your region.
- Label ports for easy identification.
- Use keystone plates for flexibility.
- Use pass-through plates for pre-terminated cables.
Proper wall plates improve the appearance of installations and make connections more reliable and easy to use.
