Wi-Fi Antennas: SMA, RP-SMA, N-Type, CRC9 and TS9 Antennas, Bases and Connectors
An external antenna can significantly improve wireless range and signal stability for routers, network adapters, 4G and 5G modems, security cameras and IoT devices. This category covers SMA and RP-SMA antennas, N-type antennas, CRC9 and TS9 antennas, phone, TV and FM antennas, antenna bases and connectors.
Connector types

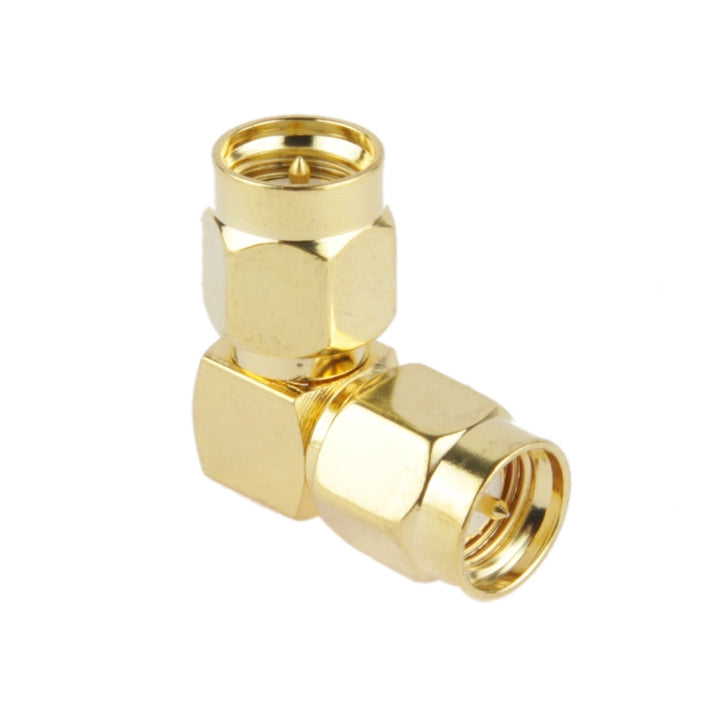

- SMA and RP-SMA: common on routers, Wi-Fi adapters and IoT devices. RP-SMA reverses the pin arrangement, so check carefully; the two are not interchangeable without an adapter.

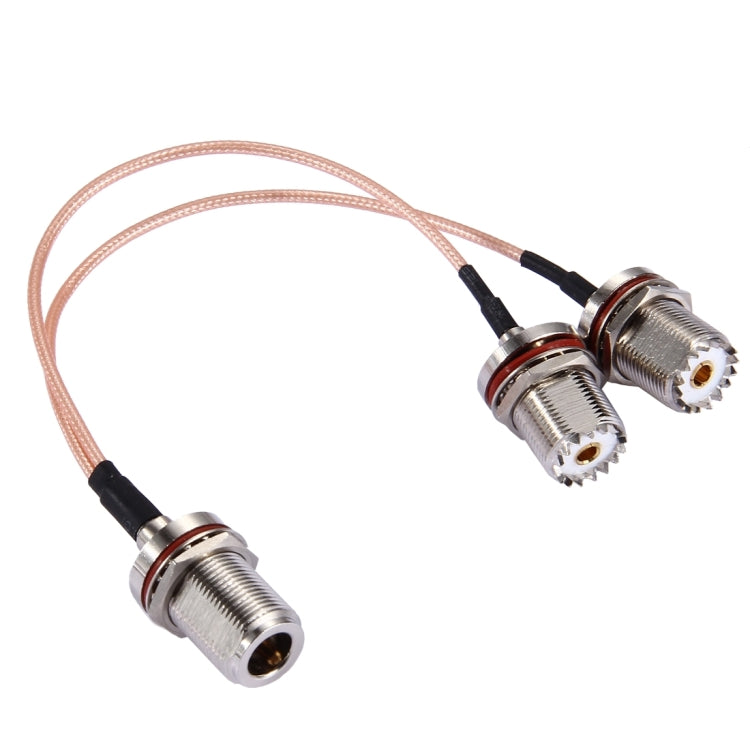

- N-type: larger, weatherproof connectors used on outdoor antennas and professional equipment.

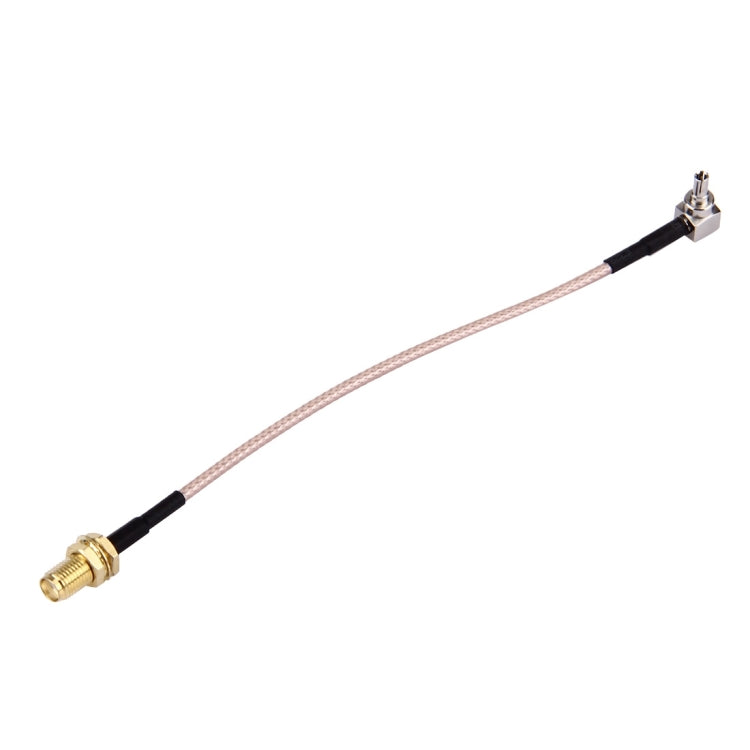

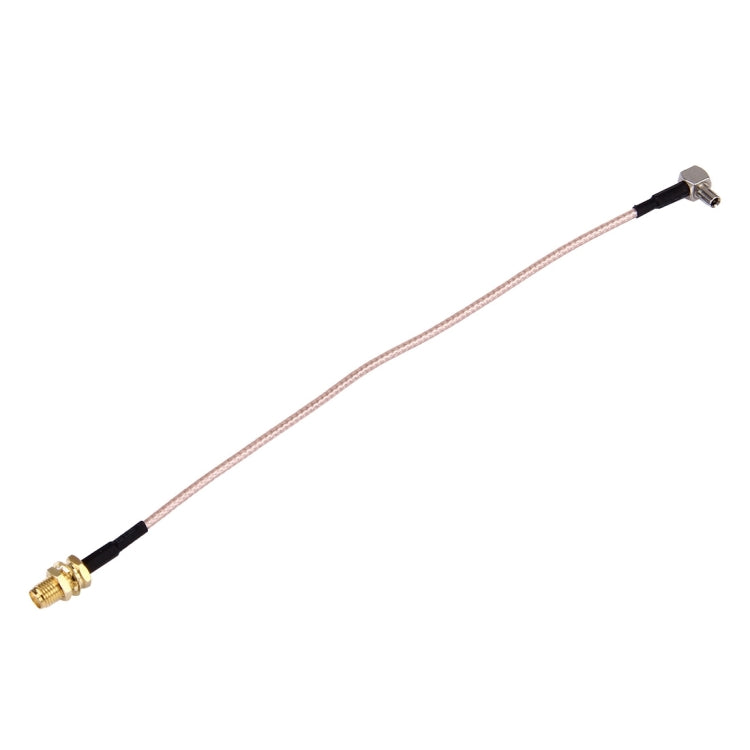

- CRC9 and TS9: small connectors used on 4G mobile routers and USB modems, such as many Huawei (CRC9) and ZTE or Netgear (TS9) devices.
Antenna types
- Omnidirectional antennas: radiate signals in all directions, suitable for general coverage.
- Directional antennas: such as panel and Yagi antennas, focus signals in one direction for long-distance links or reaching a distant mobile tower.
Frequency bands
Antennas are designed for specific frequencies, such as 2.4 GHz and 5 GHz for Wi-Fi, or 700 to 2700 MHz for 4G. Choose an antenna that matches your device's bands.
Gain
Antenna gain (dBi) indicates how strongly the antenna focuses signals. Higher gain omnidirectional antennas extend range horizontally but reduce vertical coverage. Higher gain directional antennas reach further but must be aimed accurately.
Antenna bases and cables
Magnetic bases and extension cables allow positioning antennas higher or nearer windows for better signal. Keep cables short, as longer cables lose signal.
Practical tips
- Check SMA versus RP-SMA before buying.
- Match antennas to frequency bands.
- Aim directional antennas towards the router or mobile tower.
- Use low-loss cables for outdoor installations.
The right antenna improves connectivity, especially in rural areas and large buildings.
Outdoor installation
Outdoor antennas should be mounted securely and as high as practical, with cable connectors sealed against water using weatherproof tape. Ground antenna masts properly to reduce the risk of damage from lightning and static.
