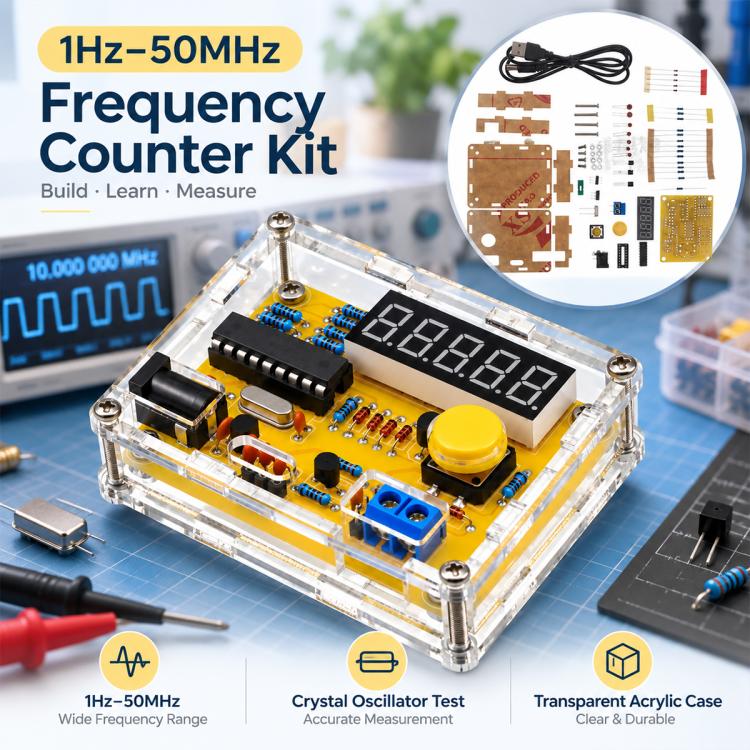

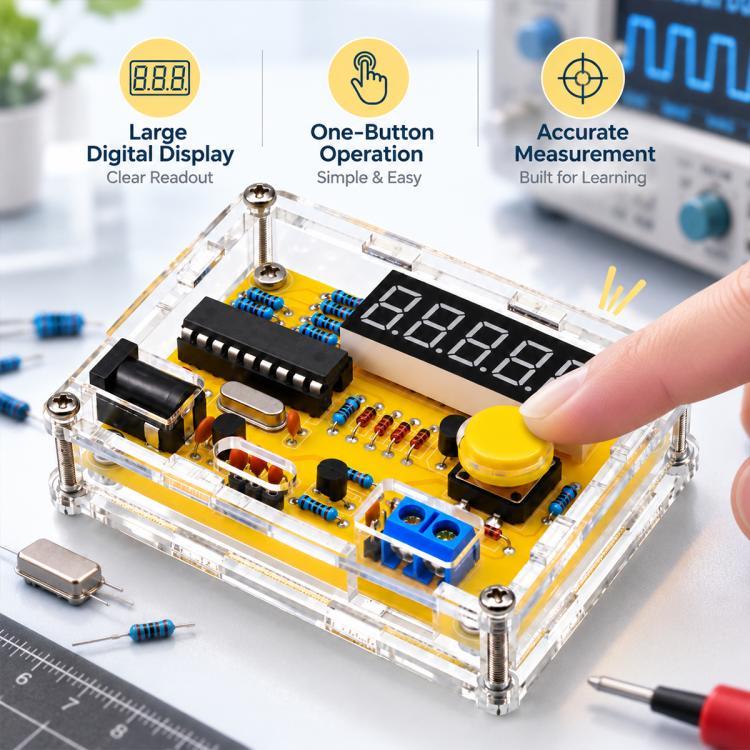

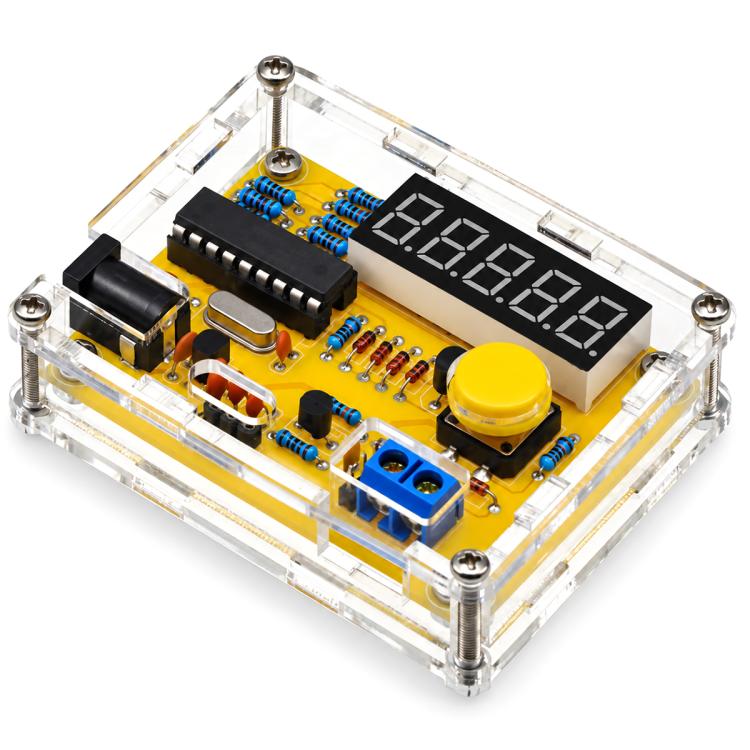

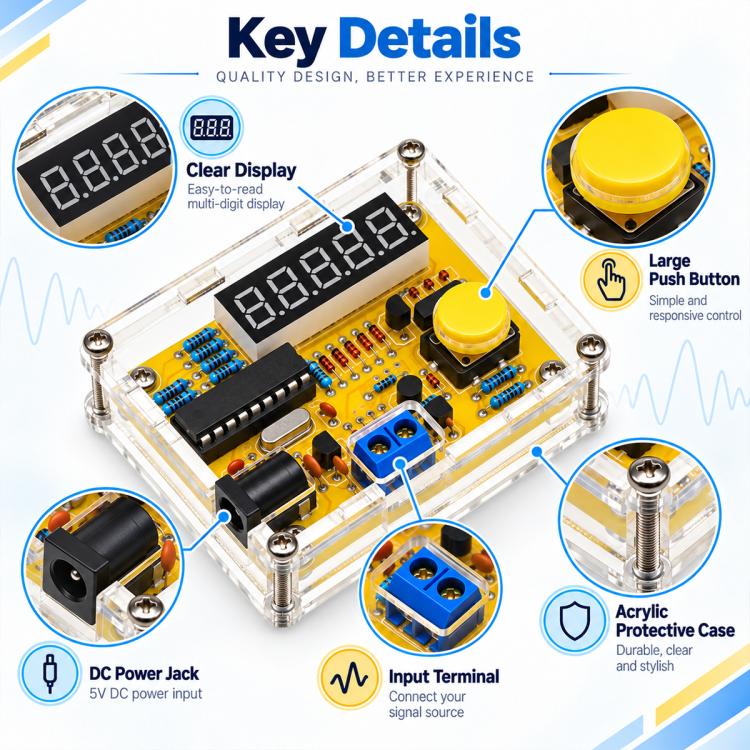

1Hz-50MHz Frequency Meter with Shell Frequency Counter DIY Kit Digital
£6.00
Skip to product information
In stock
New
1Hz-50MHz Frequency Meter with Shell Frequency Counter DIY Kit Digital
SKU
EDA0104447
£6.00
Features:
1. Frequency range 1 Hz to 50 MHz
2. Five digits resolution (display for example x.xxxx kHz, x.xxxx MHz, or xx.xxx MHz)
3. Measuring signal amplitude can be up to 30 V

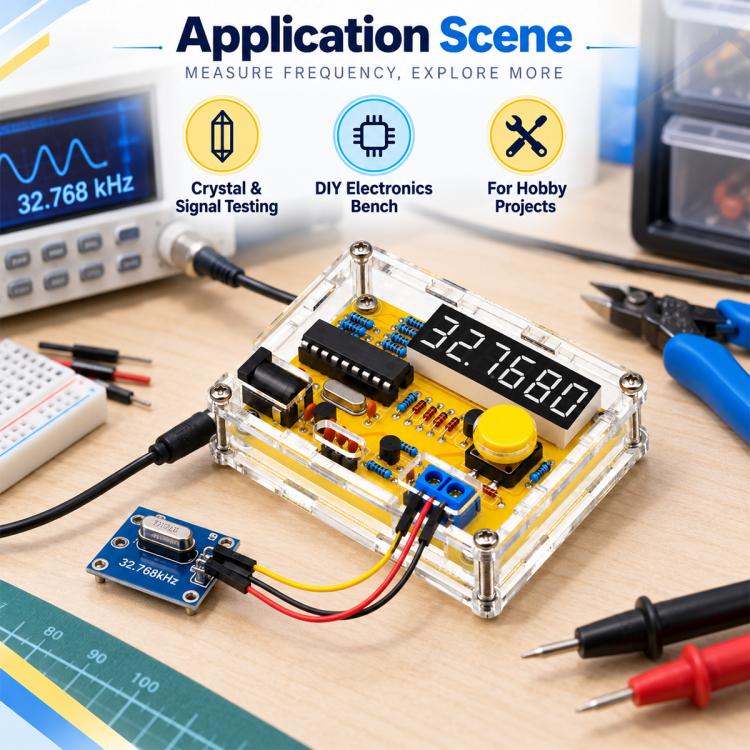

4. 4-40 MHz passive crystals can measure
5. Automatic range switching with different gate times
6. Optional addition or subtraction of a frequency offset (programmable)
7. Very low component count: a PIC 16F628, 5 7-segment LED displays, a 20MHz crystal and a few resistors
8. Optional (configurable) power-saving mode which automatically turns
9. The display off if the frequency didn't change significantly within 15seconds

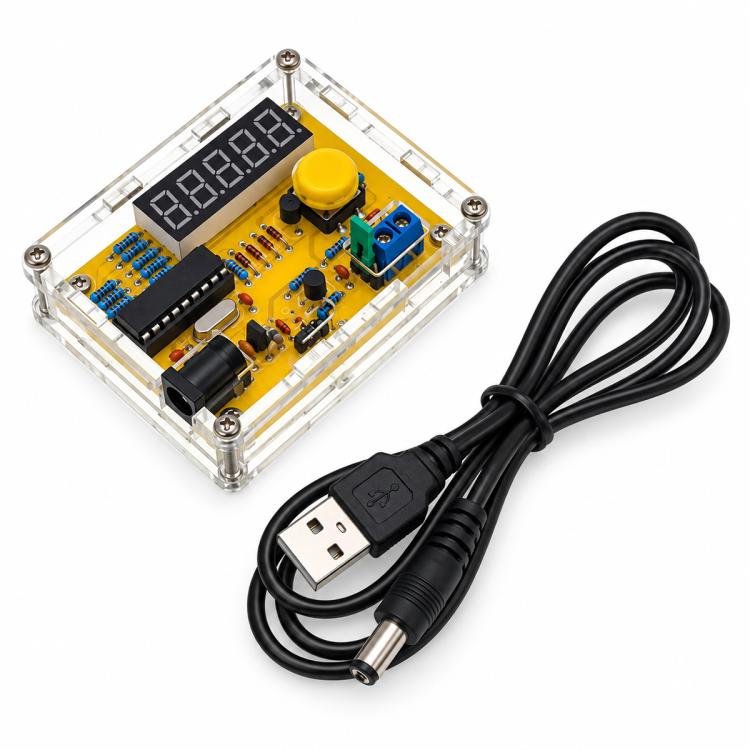

10. USB 5V or DC 5-12V power supply can be used

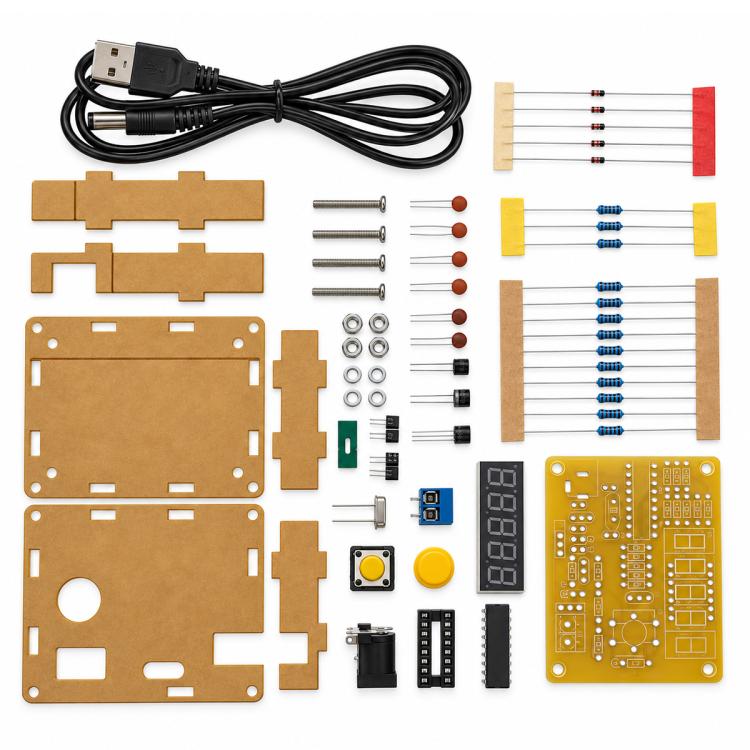

Package included:
1x DIY Kits
1. Frequency range 1 Hz to 50 MHz
2. Five digits resolution (display for example x.xxxx kHz, x.xxxx MHz, or xx.xxx MHz)
3. Measuring signal amplitude can be up to 30 V
4. 4-40 MHz passive crystals can measure
5. Automatic range switching with different gate times
6. Optional addition or subtraction of a frequency offset (programmable)
7. Very low component count: a PIC 16F628, 5 7-segment LED displays, a 20MHz crystal and a few resistors
8. Optional (configurable) power-saving mode which automatically turns
9. The display off if the frequency didn't change significantly within 15seconds
10. USB 5V or DC 5-12V power supply can be used
Package included:
1x DIY Kits
Specification:
| Package Weight |
|
