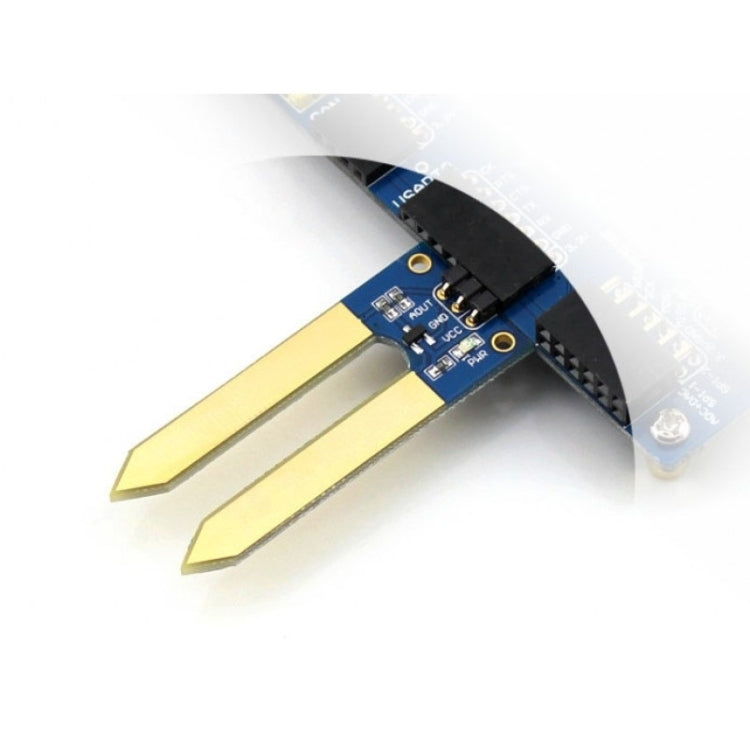

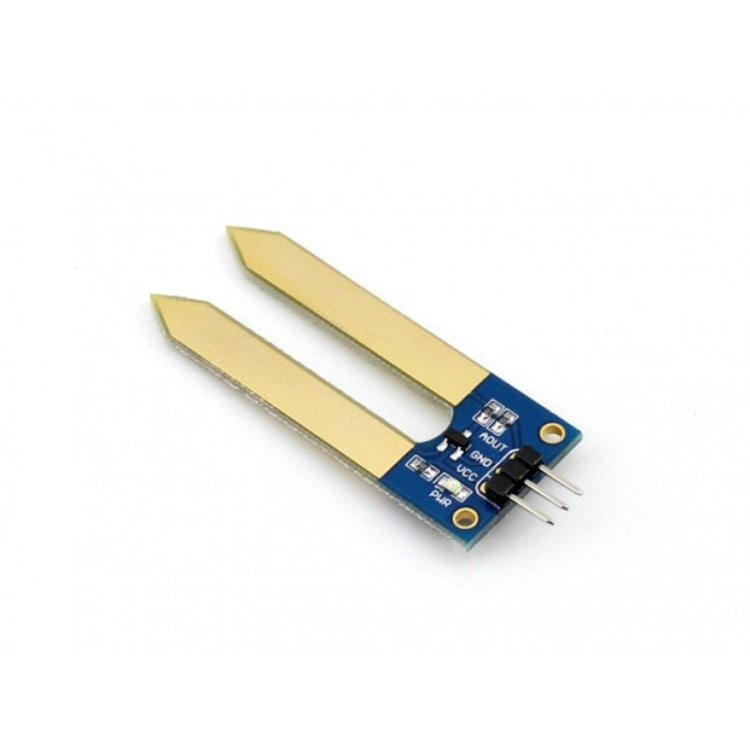

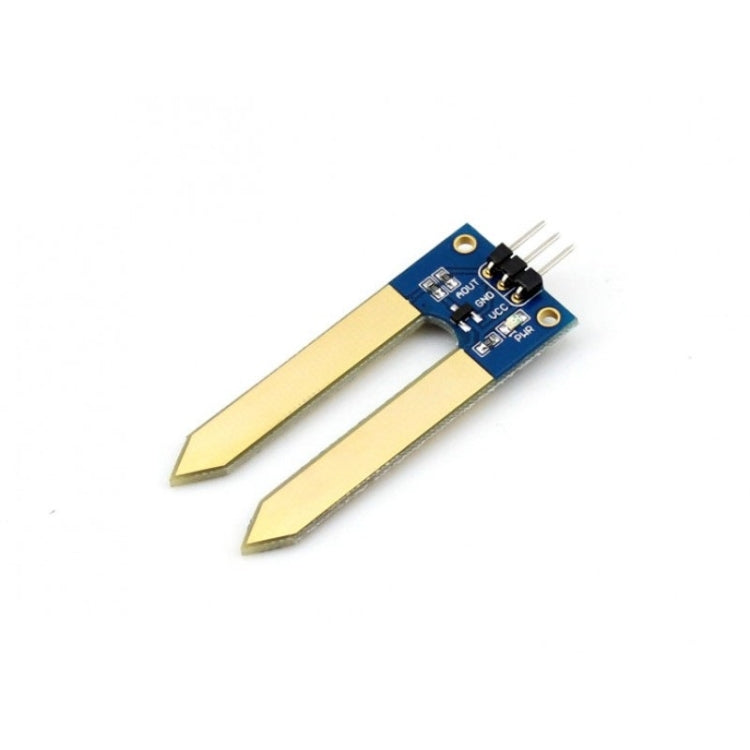

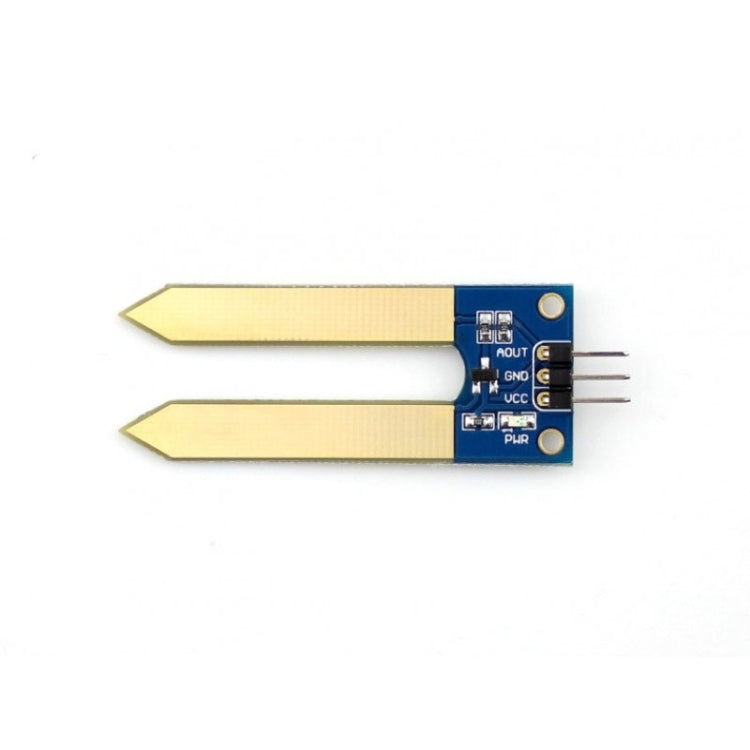

Waveshare Moisture Sensor
Moisture
£3.00
Skip to product information
Overview
1. Fork-like design, make it easy to insert into the soil
2. Output voltage boosts along with the soil moisture level increases
Specifications
1. Detection depth: 38mm
2. Power: 2.0V ~ 5.0V
3. Dimension: 20.0mm * 51.0mm
4. Mounting holes size: 2.0mm
Applications
1. Auto watering system
2. Flowerpot soil moisture detection
3. Auto pouring system
How to Use
In the case of working with a MCU:
1. VCC: 3.3V ~ 5.5V
2. GND: GND
3. DOUT: MCU.IO
Package Contents
1. Moisture Sensor x1
2. 3-pin custom connector jumper wire x1
1. Fork-like design, make it easy to insert into the soil
2. Output voltage boosts along with the soil moisture level increases
Specifications
1. Detection depth: 38mm
2. Power: 2.0V ~ 5.0V
3. Dimension: 20.0mm * 51.0mm
4. Mounting holes size: 2.0mm
Applications
1. Auto watering system
2. Flowerpot soil moisture detection
3. Auto pouring system
How to Use
In the case of working with a MCU:
1. VCC: 3.3V ~ 5.5V
2. GND: GND
3. DOUT: MCU.IO
Package Contents
1. Moisture Sensor x1
2. 3-pin custom connector jumper wire x1
