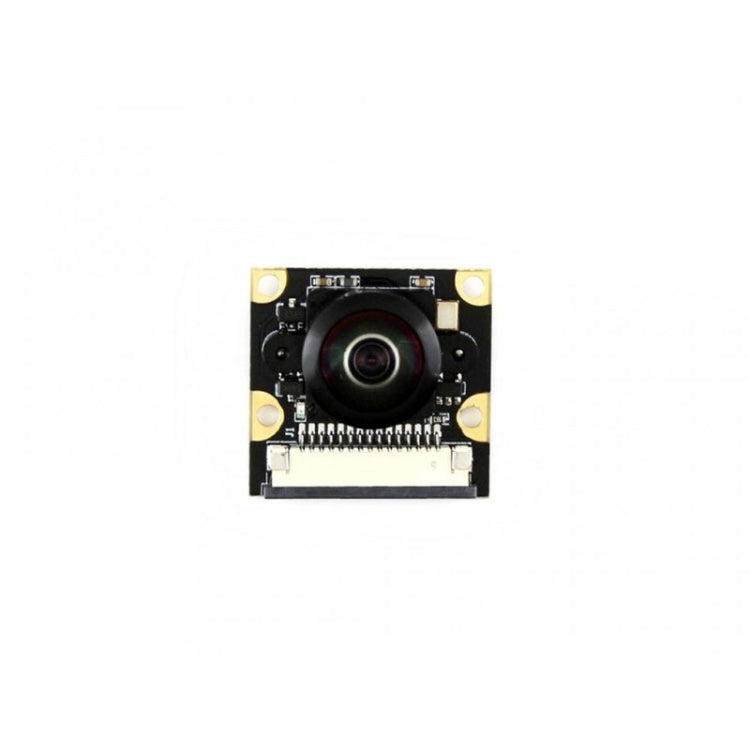

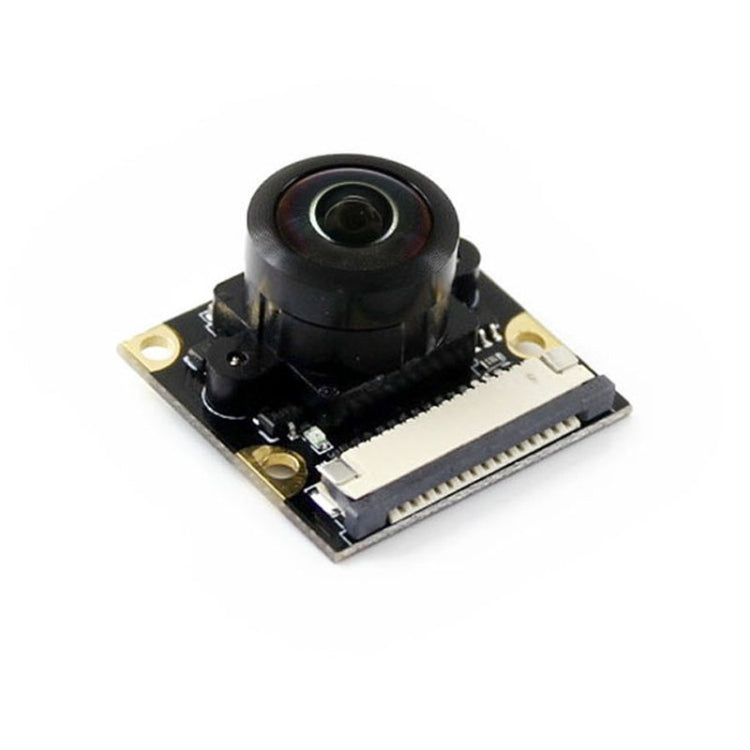

Waveshare RPi Camera (M) Fisheye Lens Module
14037
£20.00
Skip to product information
Features
1. Raspberry Pi Camera, supports all revisions of the Pi
2. Fisheye Lens, offers wider field of view
3. 5 megapixel OV5647 sensor
4. Adjustable focus distance
5. Camera specifications
- CCD size : 1/4inch
- Focal Length : 0.87mm
- Angle of View (diagonal) : 200 degree (while other normal cameras are typically 72 degree)
- Sensor best resolution : 1080p
6. 4 screw holes
- Used for attachment
- Provides 3.3V power output
- Supports connecting fill flash LED
7. 2592 × 1944 still picture resolution
8. Support 1080p30fps , 720p60fps and 640x480p60/90fps video record
9. Dimension: 25mm x 24mm
Note: To use the camera with Raspberry Pi Zero / Zero W / Zero WH, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable
Package Contents
1. RPi Camera (M) x1
2. 15-pin FFC (opposite sides contact) x1
