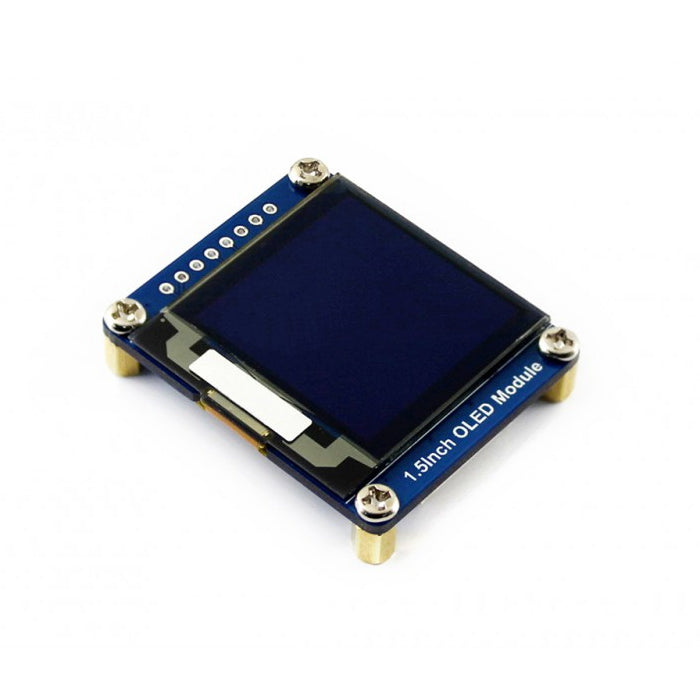

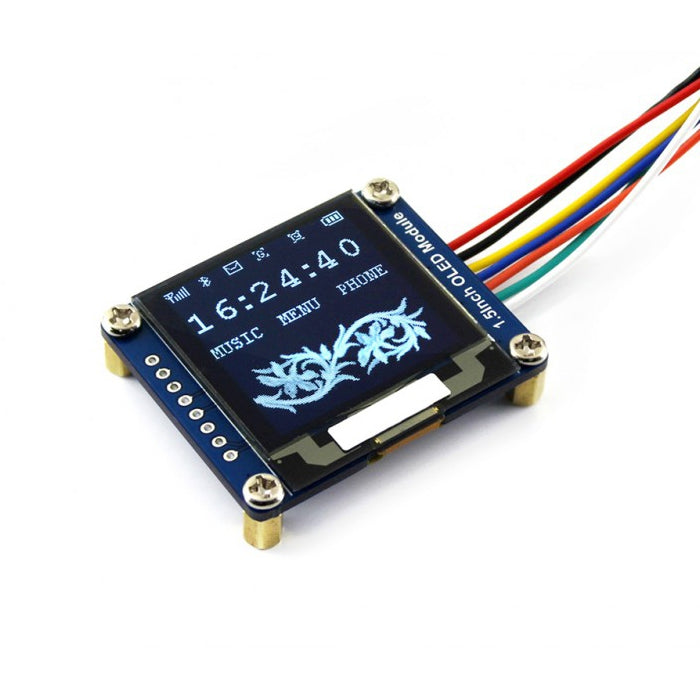

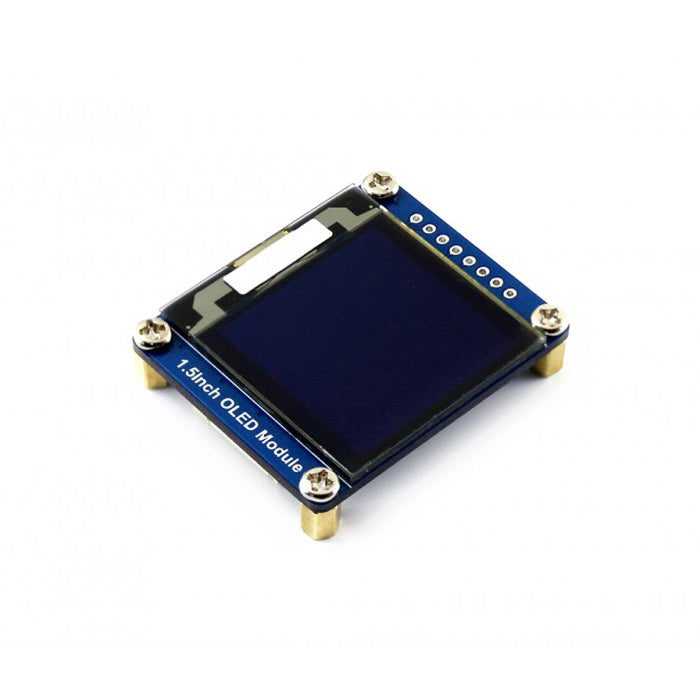

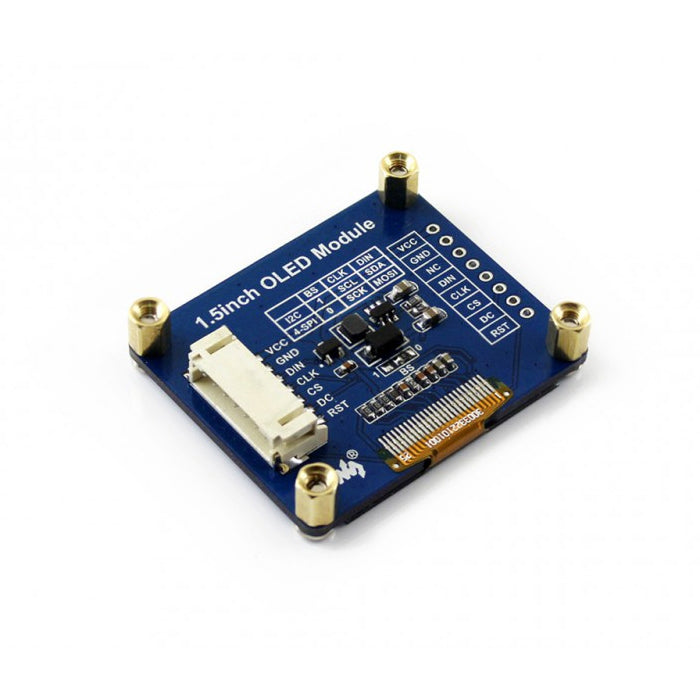

WAVESHARE 128x128 General 1.5inch OLED Display Module 16 Gray Scale with SPI/I2C Interface
1.5inch OLED
£10.00
Skip to product information
In stock
New
WAVESHARE 128x128 General 1.5inch OLED Display Module 16 Gray Scale with SPI/I2C Interface 1.5inch OLED
SKU
DIY1215
£10.00
1. 128x128 high resolution
2. 16 gray scale, better display effect
3. Supports SPI or I2C interface, configured via onboard resistor
4. Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
5. Driver: SSD1327
6. Interface: SPI / I2C
7. Display color: White
8. Gray scale: 16
9. Resolution: 128x128 (most other competitive products are typically 128x64)
10. Viewing angle: >160?°
11. Operating voltage: 3.3V / 5V
12. Dimension: 44.5 x 37 (mm)
2. 16 gray scale, better display effect
3. Supports SPI or I2C interface, configured via onboard resistor
4. Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
5. Driver: SSD1327
6. Interface: SPI / I2C
7. Display color: White
8. Gray scale: 16
9. Resolution: 128x128 (most other competitive products are typically 128x64)
10. Viewing angle: >160?°
11. Operating voltage: 3.3V / 5V
12. Dimension: 44.5 x 37 (mm)
Specification:
| Package Weight |
|
