Waveshare 16498 3.2inch 320x240 Pixels Touch LCD (D), With Touch Panel And Stand-Alone Controllers
3.2inch LCD (D)
£13.00
Skip to product information
In stock
1. Working voltage: 3.3V
2. Resolution: 320 × 240 pixels

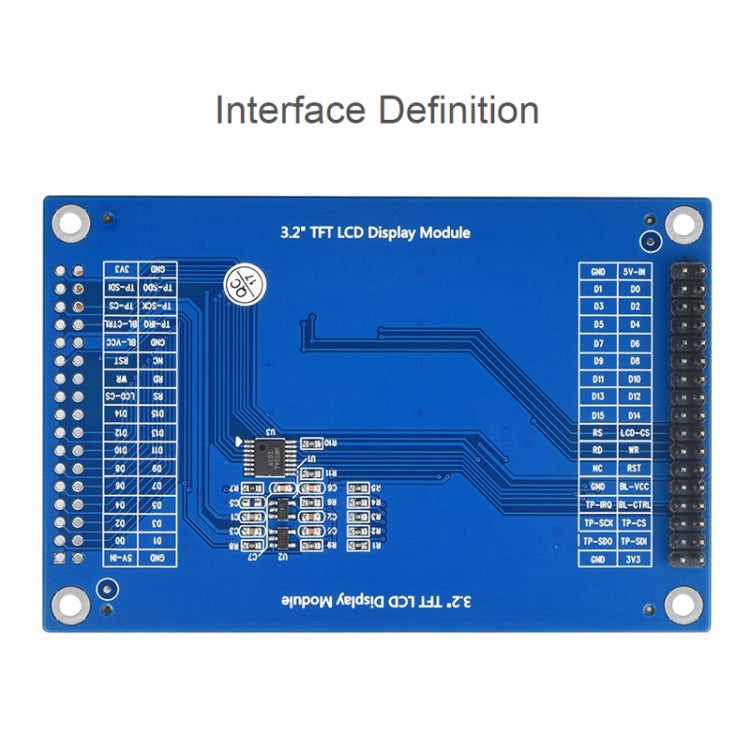

3. Interface: 8080 parallel port + SPI
4. Display panel: TN
5. LCD controller: ILI9341
6. Display size: 48.6 × 64.8 mm
7. Pixel pitch: 0.198 × 0.198 mm

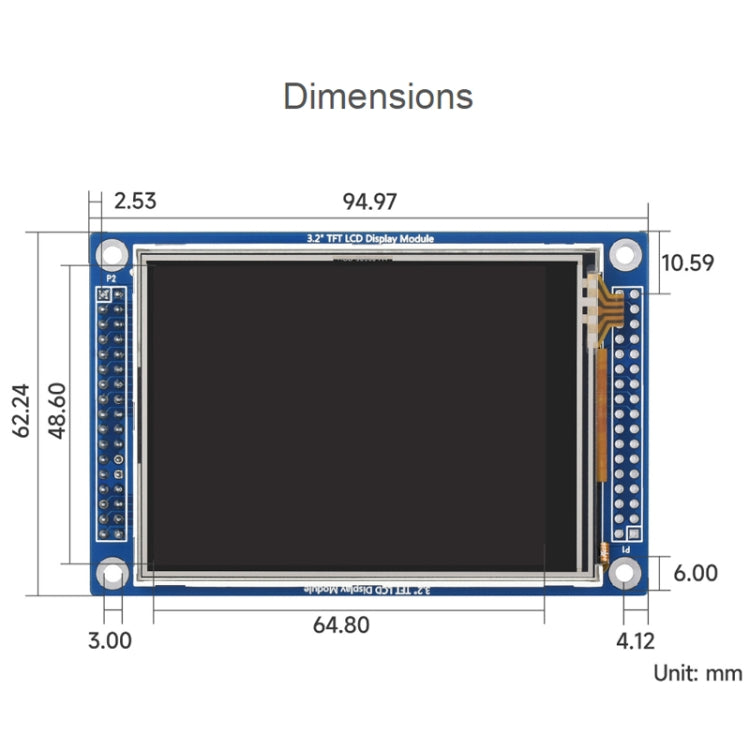

8. Module size 94.97 × 62.24mm
9. 320×240 resolution LCD, 262K colors, the color screen display is clear
10. Onboard touch chip, smoother touch effect than touch panel controlled by AD pin
11. Programmable backlight, more power saving
12. Self-contained development resources and manuals (take STM32 as an example)
New
Waveshare 16498 3.2inch 320x240 Pixels Touch LCD (D), With Touch Panel And Stand-Alone Controllers 3.2inch LCD (D)
Brand
Waveshare
SKU
TBD0550011
£13.00
1. Working voltage: 3.3V
2. Resolution: 320 × 240 pixels
3. Interface: 8080 parallel port + SPI
4. Display panel: TN
5. LCD controller: ILI9341
6. Display size: 48.6 × 64.8 mm
7. Pixel pitch: 0.198 × 0.198 mm
8. Module size 94.97 × 62.24mm
9. 320×240 resolution LCD, 262K colors, the color screen display is clear
10. Onboard touch chip, smoother touch effect than touch panel controlled by AD pin
11. Programmable backlight, more power saving
12. Self-contained development resources and manuals (take STM32 as an example)
Specification:
| Package Weight |
|
