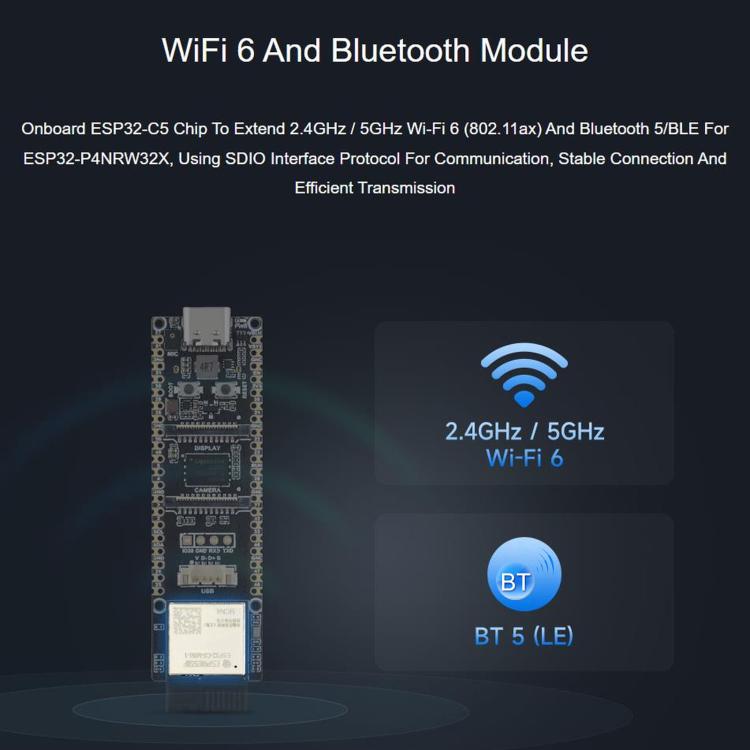

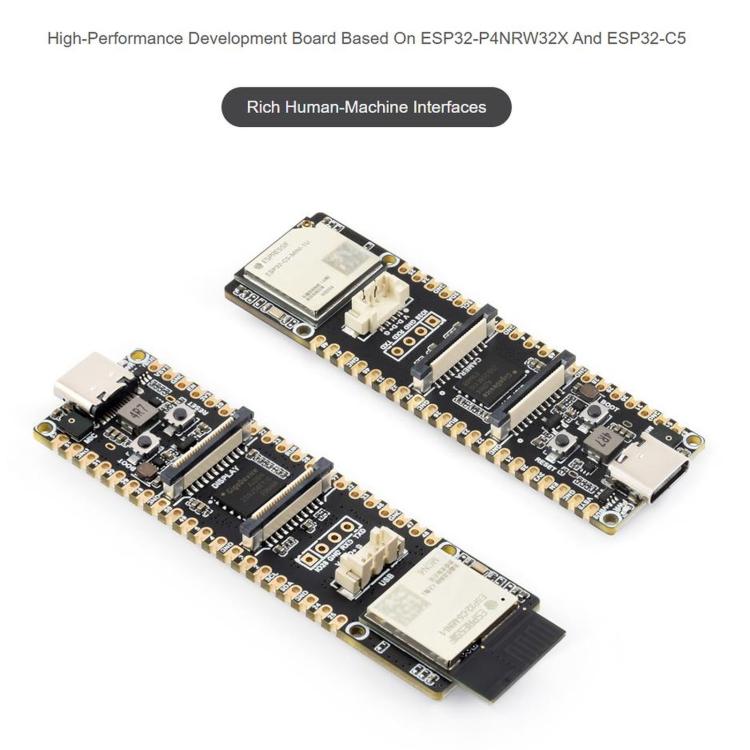

WAVESHARE Dual-Core RISC-V Development Board With Integrated ESP32-C5, Supporting 2.4GHz & 5GHz Wi-Fi 6
PCB Antenna Standard
£15.00
Skip to product information
In stock
1. High-performance MCUs featuring RISC-V 32-bit dual-core and single-core processors
2. 128KB HP ROM, 16KB LP ROM, 768KB HP L2MEM, 32KB LP SRAM, 8KB TCM
3. Powerful image and audio processing capabilities; image and audio processing interfaces include a JPEG codec, pixel processing accelerator (PPA), image signal processor (ISP), and H.264 video encoder

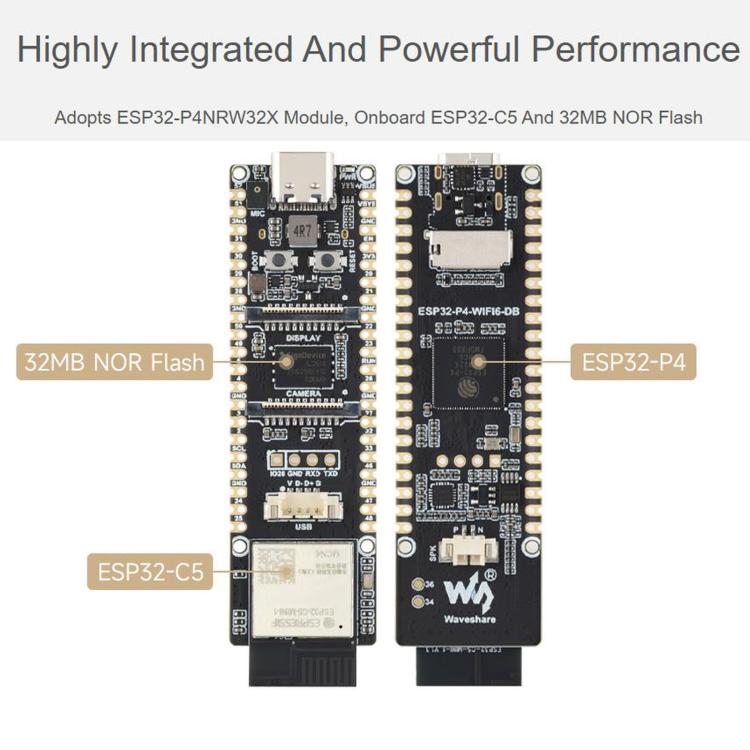

4. 32MB PSRAM stacked within the chip package, with 32MB NOR Flash integrated externally

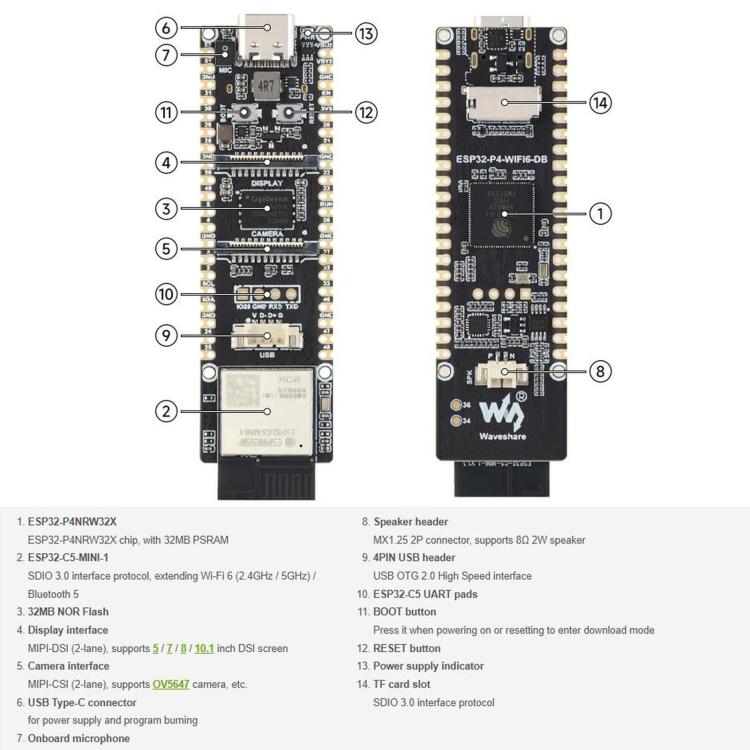

5. Common peripheral interfaces brought out on the board, including MIPI-CSI, MIPI-DSI, USB 2.0 OTG, SDIO 3.0 SD card slot, and microphone and speaker terminals

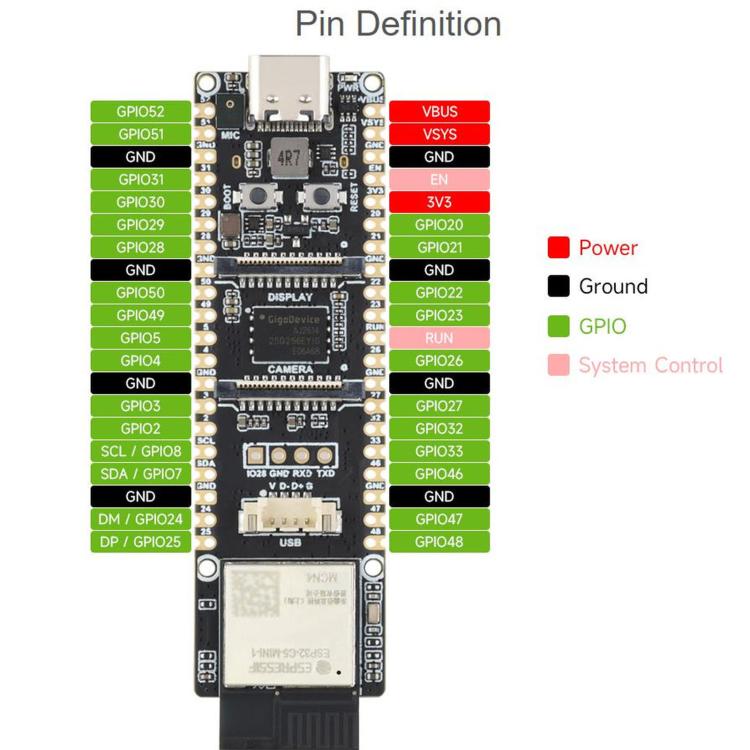

6. On-board 2 × 20-pin header providing access to 27 remaining programmable GPIOs
7. Security mechanisms: secure boot, Flash encryption, hardware encryption accelerator, and hardware random number generator. Also supports hardware access protection, enabling access permission management (APM) and privilege separation
Display (included only in kit B):
1. Model: 10.1-DSI-TOUCH-A
2. Resolution: 800 x 1280
3. Communication Interface: MIPI-DSI (2-lane)
4. Brightness: 400 cd/m2
5. Touch Controller: GT9271
6. Contrast Ratio: 800:1
7. Operating Temperature: 0 to 60 degrees Celsius
8. Pixel Size: 0.1692 (H) x 0.1692 (V) (mm)
9. Display Size: 135.36 x 216.58 mm
10. Dimensions: 147.0 x 239.0 mm
Camera (included in kit A/B):
1. Image Sensor: OV5647
2. Megapixels: 5.0
3. Focal Length: 6 mm
4. Infrared Night Vision: Not supported
5. CMOS Size: 1/4 inch
6. Aperture: F2.0
7. Diagonal Field of View: 60.6 degrees
8. Focusing Method: Manual Focus
Package A Contents:
1. Development Board x 1
2. Speaker x 1
3. Camera x 1
4. 15-pin FFC ribbon cable x 1
5. 15-pin to 22-pin ribbon cable x 1
6. MX1.25 4-pin to USB adapter x 1
Package B Contents:
1. Development board x 1
2. 10.1-inch display x 1
3. Speaker x 1
4. Camera x 1
5. 15-pin FFC ribbon cable x 1
6. 15-pin to 22-pin ribbon cable x 1
7. MX1.25 4-pin to USB adapter x 1
8. DSI ribbon cable x 1
9. FFC 22-pin ribbon cable x 2
10. MX 1.25 2-pin to 2.54 3-pin adapter x 1
11. MX 1.25 2-pin to MX 1.25 4-pin adapter x 1
12. Pack of copper pillars x 4
1. High-performance MCUs featuring RISC-V 32-bit dual-core and single-core processors
