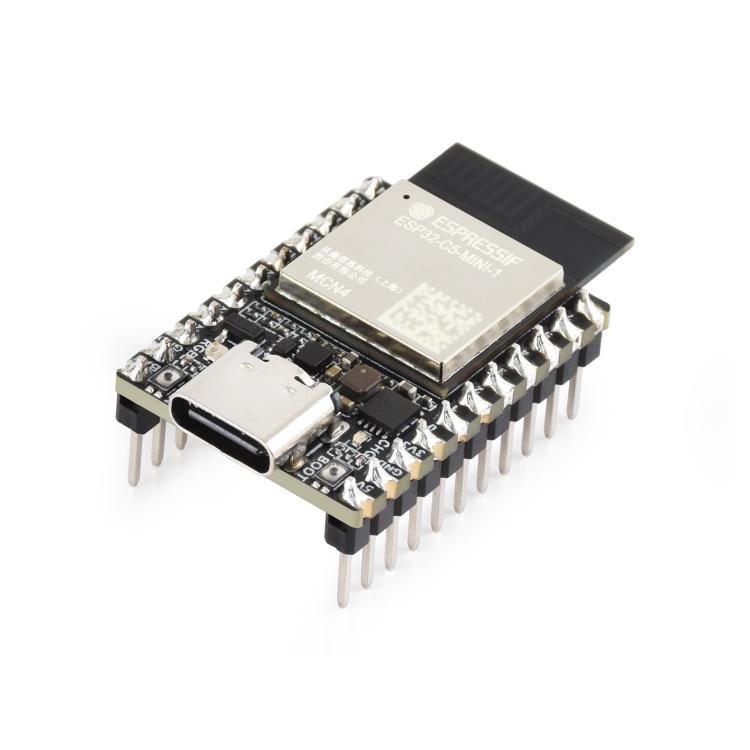

Waveshare ESP32-C5 Mini Dual-Band Wi-Fi 6 Development Board, 240MHz Single-Core Processor
with Pinheader
£8.00
Skip to product information
In stock
1. Powered by the ESP32-C5-MINI-1 series module as the main controller, featuring a RISC-V 32-bit single-core processor with a clock speed of up to 240MHz.
2. Integrated with 320KB ROM, 384KB HP SRAM, 16KB LP SRAM, and 4MB Flash memory.
3. Supports 2.4GHz and 5GHz dual-band Wi-Fi 6, Bluetooth 5 (LE), and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication with excellent RF performance.
4. Equipped with a USB Type-C interface with reversible plug orientation for convenient power supply, development, and debugging.
5. Onboard MP1605GTF-Z high-efficiency DC-DC power chip supporting a maximum load current of up to 2A.
6. Onboard ETA6098 power management circuit supporting lithium battery power supply, charging status indication, and battery voltage sampling.

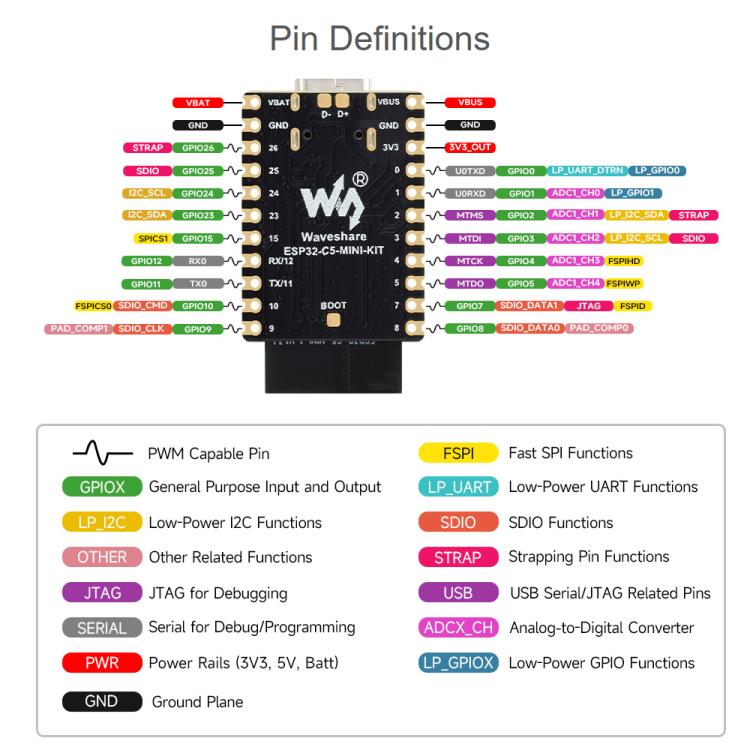

7. Rich peripheral interfaces including USB, UART, I2C, SPI, ADC, PWM, etc., enabling flexible implementation of various functions.
8. Castellated hole design allows direct soldering and integration onto custom user-designed baseboards.
9. Supports multiple low-power operating modes to balance communication range, data rate, and power consumption for various application scenarios.
Waveshare ESP32-C5 Mini Dual-Band Wi-Fi 6 Development Board, 240MHz Single-Core Processor with Pinheader
SKU
TBD0607194901
£8.00
1. Powered by the ESP32-C5-MINI-1 series module as the main controller, featuring a RISC-V 32-bit single-core processor with a clock speed of up to 240MHz.
2. Integrated with 320KB ROM, 384KB HP SRAM, 16KB LP SRAM, and 4MB Flash memory.
3. Supports 2.4GHz and 5GHz dual-band Wi-Fi 6, Bluetooth 5 (LE), and IEEE 802.15.4 (Zigbee 3.0 and Thread) wireless communication with excellent RF performance.
4. Equipped with a USB Type-C interface with reversible plug orientation for convenient power supply, development, and debugging.
5. Onboard MP1605GTF-Z high-efficiency DC-DC power chip supporting a maximum load current of up to 2A.
6. Onboard ETA6098 power management circuit supporting lithium battery power supply, charging status indication, and battery voltage sampling.
7. Rich peripheral interfaces including USB, UART, I2C, SPI, ADC, PWM, etc., enabling flexible implementation of various functions.
8. Castellated hole design allows direct soldering and integration onto custom user-designed baseboards.
9. Supports multiple low-power operating modes to balance communication range, data rate, and power consumption for various application scenarios.
Specification:
| Package Weight |
|
