Waveshare For Raspberry Pi USB Debug Probe Module
24270
£15.00
Skip to product information
In stock
1. Official Raspberry Pi hardware debugging toolkit designed for Pico
2. Built with RP2040 microcontroller chip designed by for Raspberry Pi

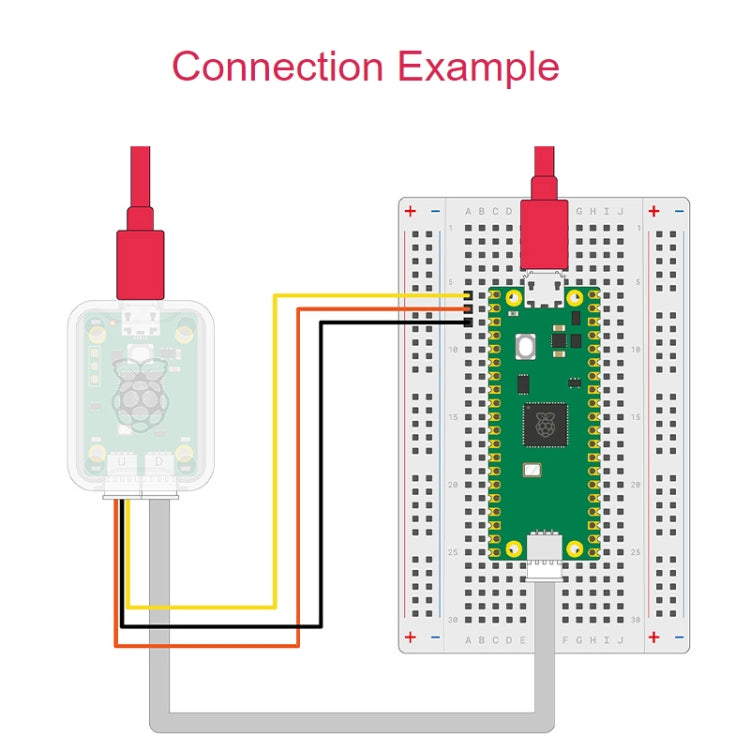

3. Integrated design, with solder-free, plug-and-play features, can be connected to the debugging interface of the target board through the SWD interface
4. RP2040 microcontroller chip designed by British for Raspberry Pi

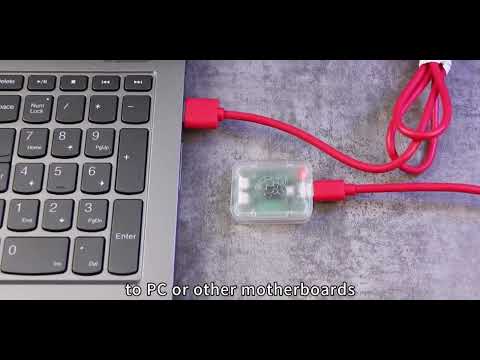

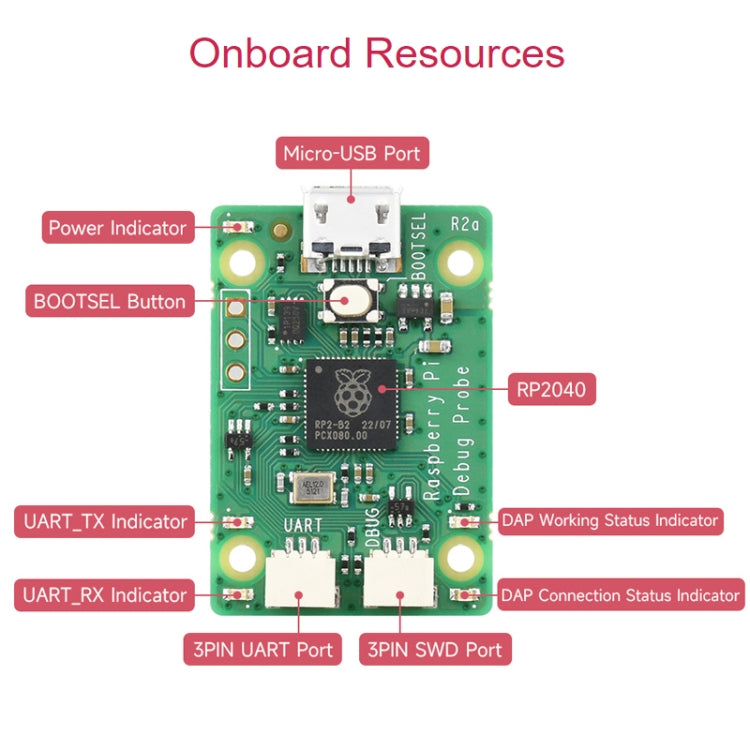

5. Onboard Micro-USB interface, used to connect to PC or other motherboards
6. Onboard 3PIN SWD interface, used to connect the target board
7. Onboard 3PIN USB to UART bridge standard CMSIS-DAP interface, compatible with most arm microcontrollers
8. Using OpenOCD and other tools that support CMSIS-DAP
9. Follow the Raspberry Pi 3PIN debug connector specification

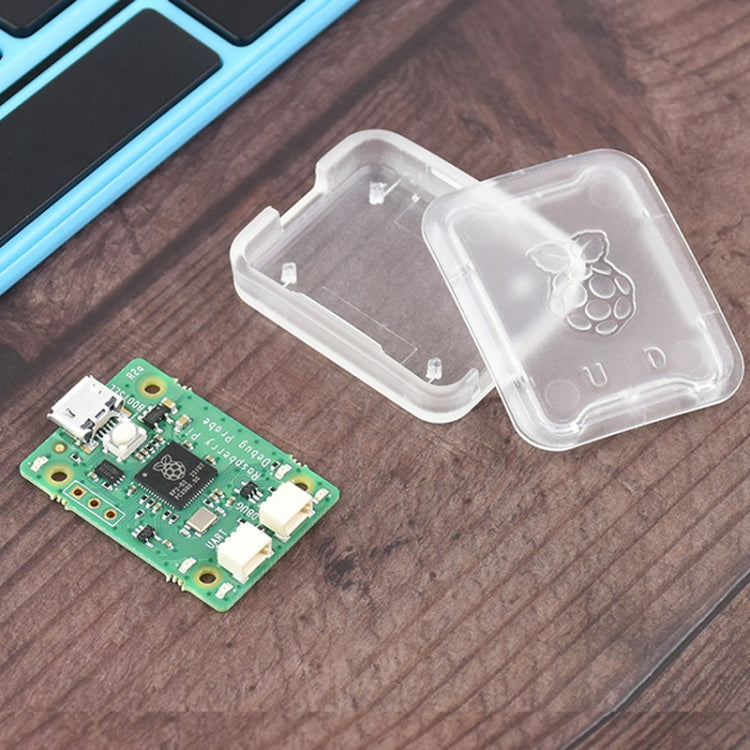

10. Comes with transparent plastic case and connecting cable
11. Open source program, more convenient for firmware upgrade

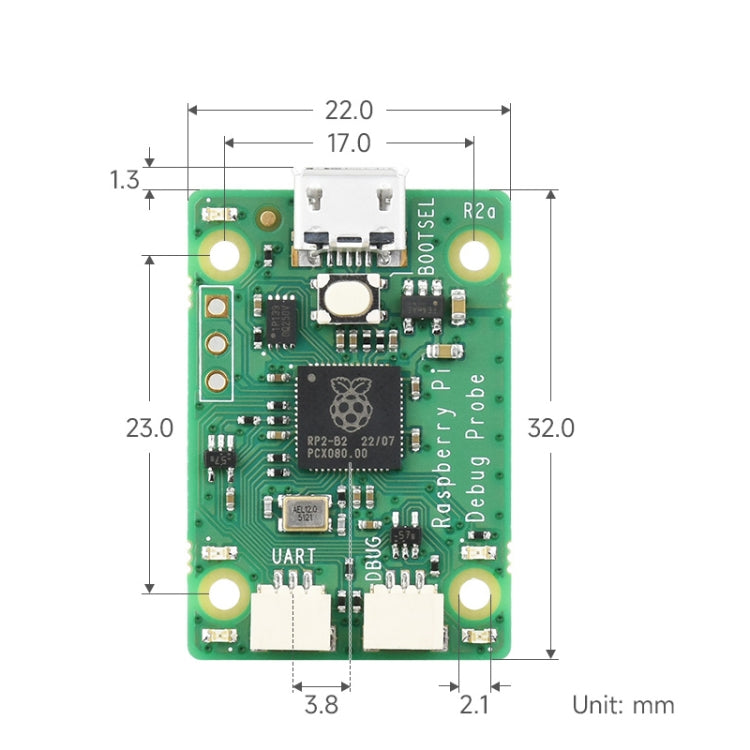

12. Size: 22x32mm
New
Waveshare For Raspberry Pi USB Debug Probe Module 24270
Brand
WAVESHARE
SKU
TBD04191871
£15.00
1. Official Raspberry Pi hardware debugging toolkit designed for Pico
2. Built with RP2040 microcontroller chip designed by for Raspberry Pi
3. Integrated design, with solder-free, plug-and-play features, can be connected to the debugging interface of the target board through the SWD interface
4. RP2040 microcontroller chip designed by British for Raspberry Pi
5. Onboard Micro-USB interface, used to connect to PC or other motherboards
6. Onboard 3PIN SWD interface, used to connect the target board
7. Onboard 3PIN USB to UART bridge standard CMSIS-DAP interface, compatible with most arm microcontrollers
8. Using OpenOCD and other tools that support CMSIS-DAP
9. Follow the Raspberry Pi 3PIN debug connector specification
10. Comes with transparent plastic case and connecting cable
11. Open source program, more convenient for firmware upgrade
12. Size: 22x32mm
Specification:
| Package Weight |
|
